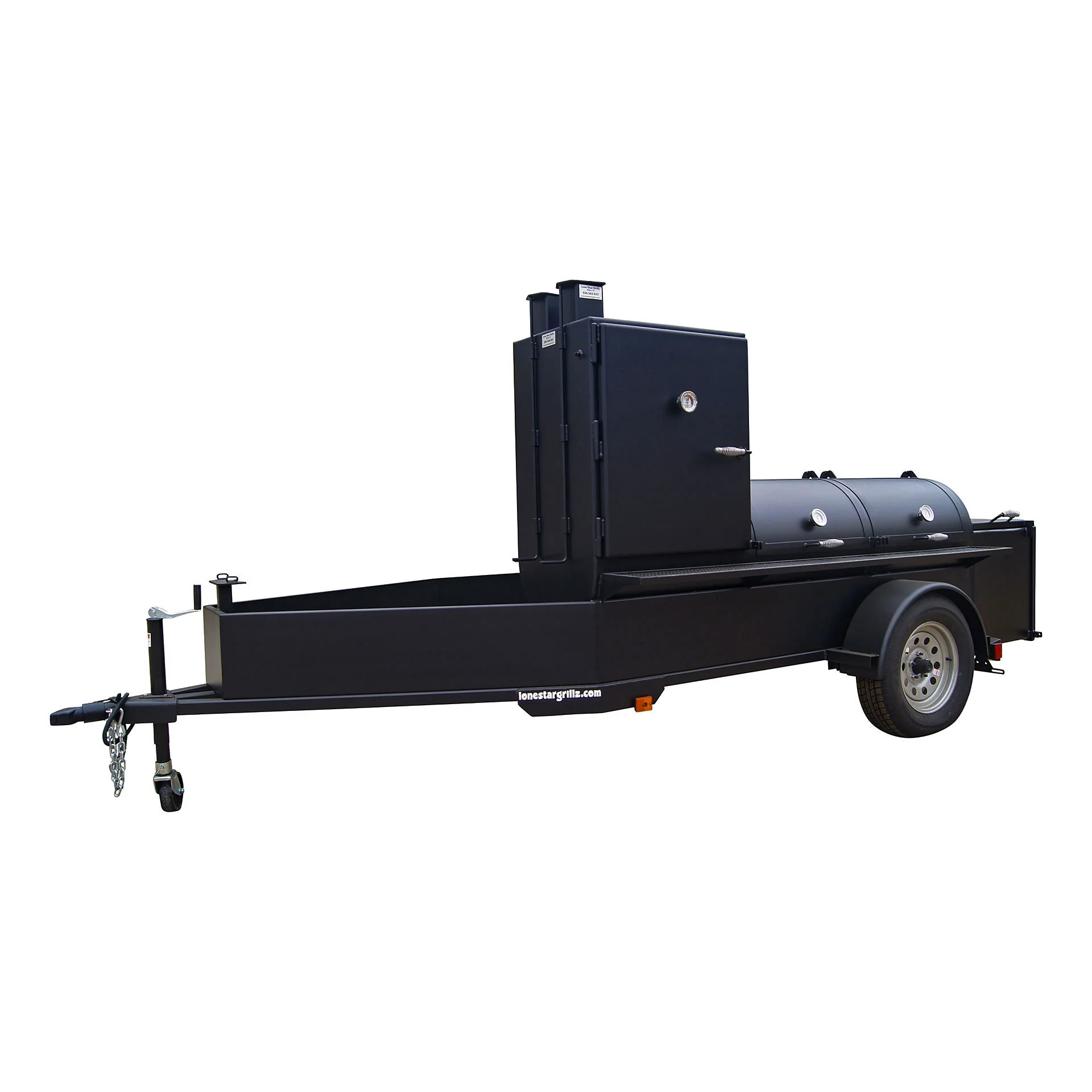

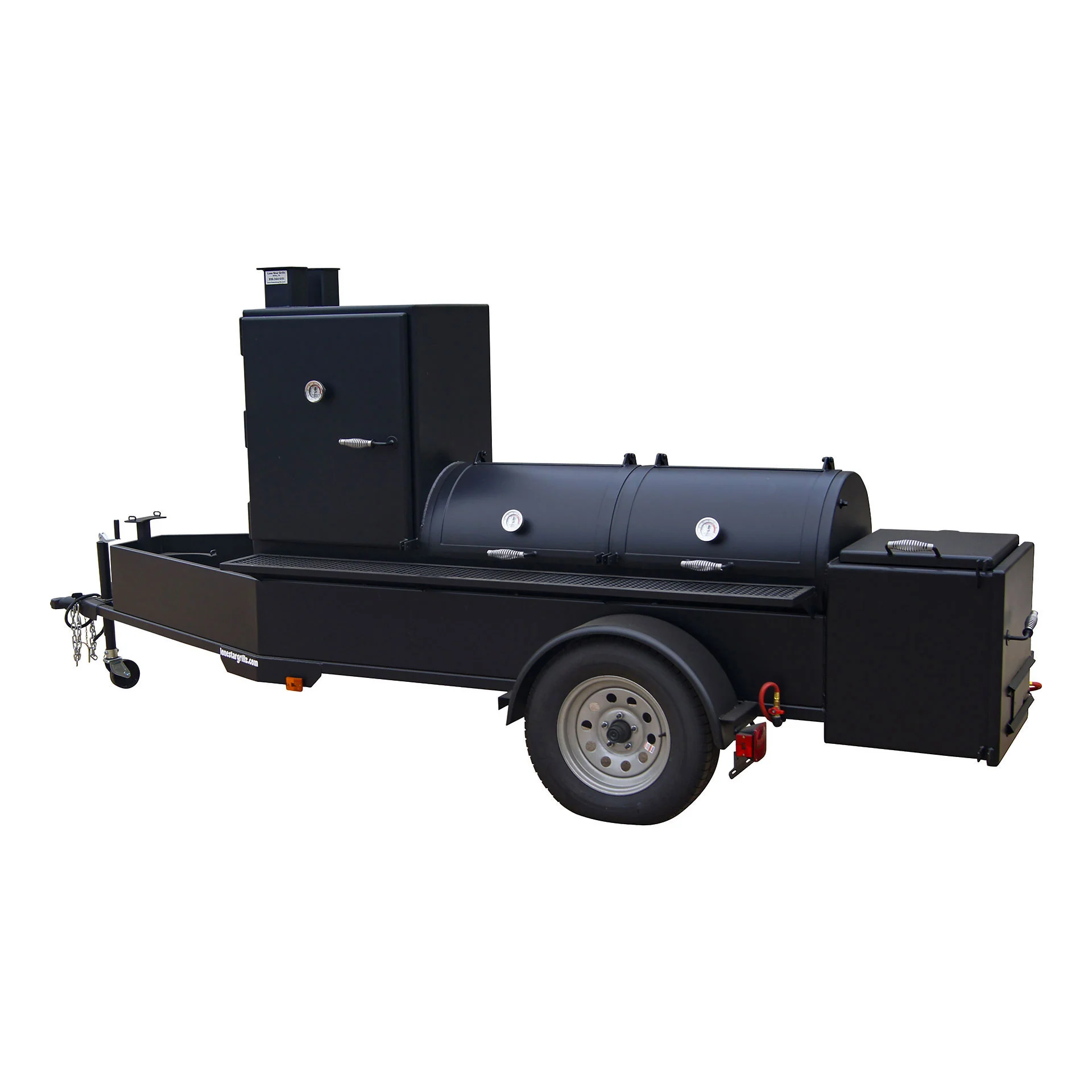

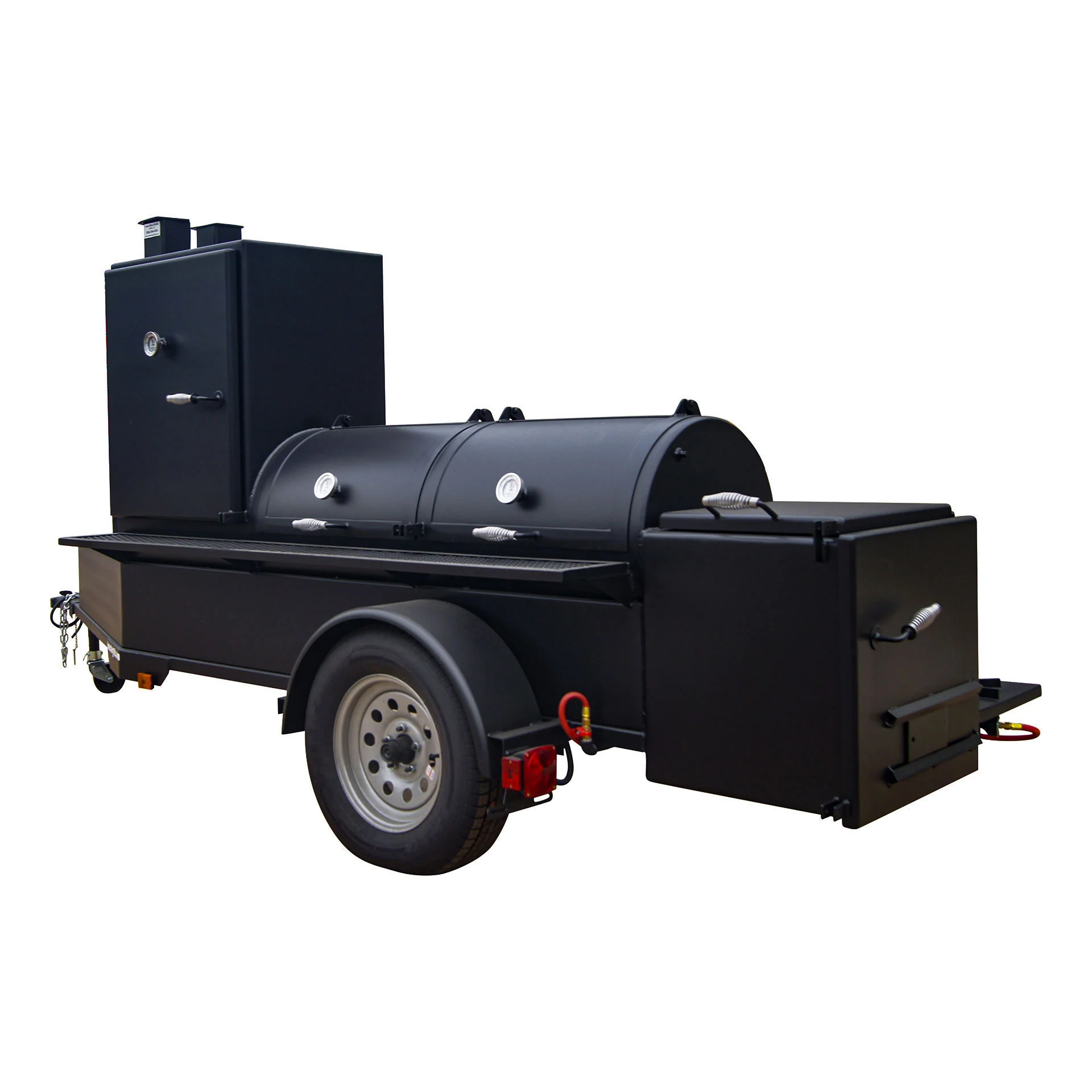

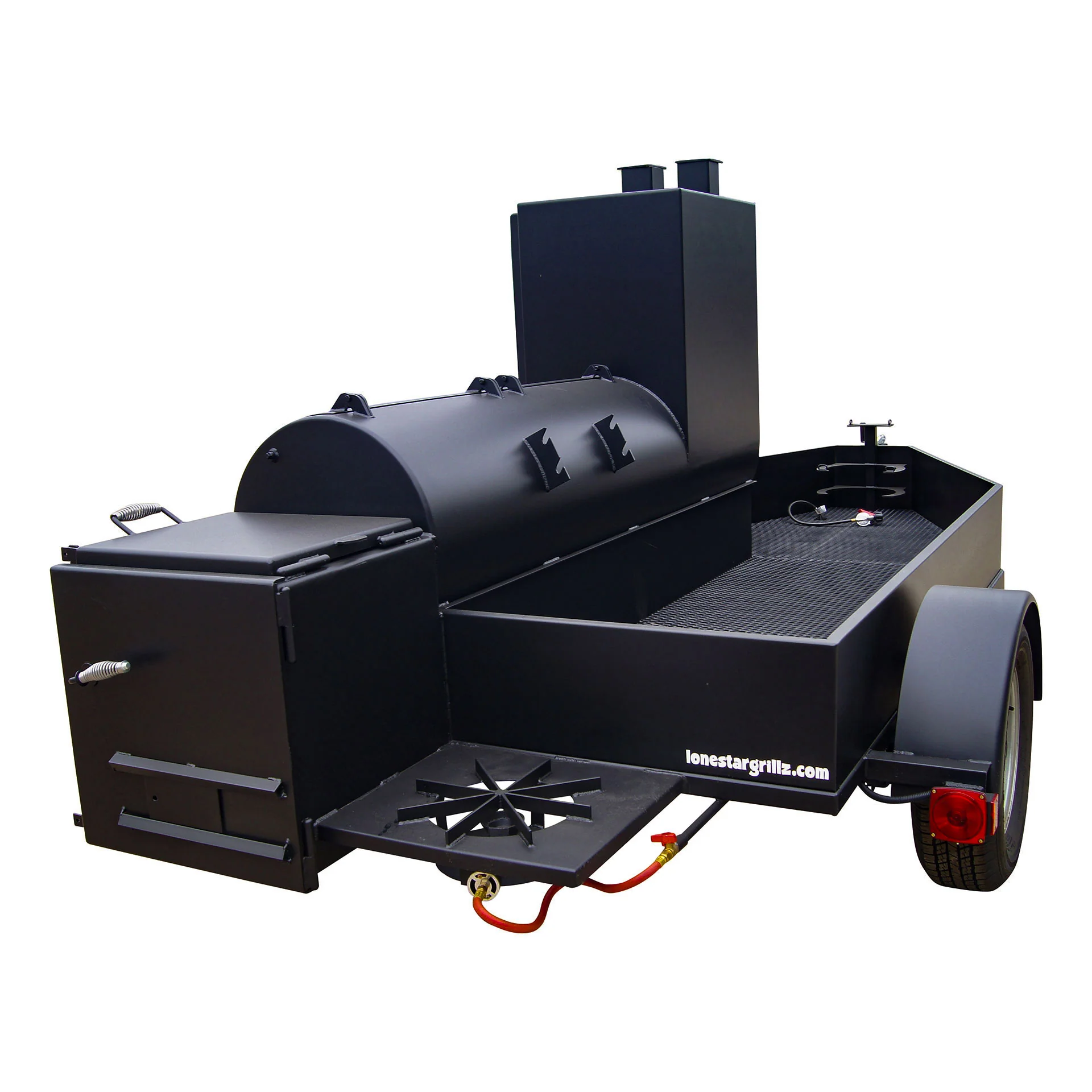

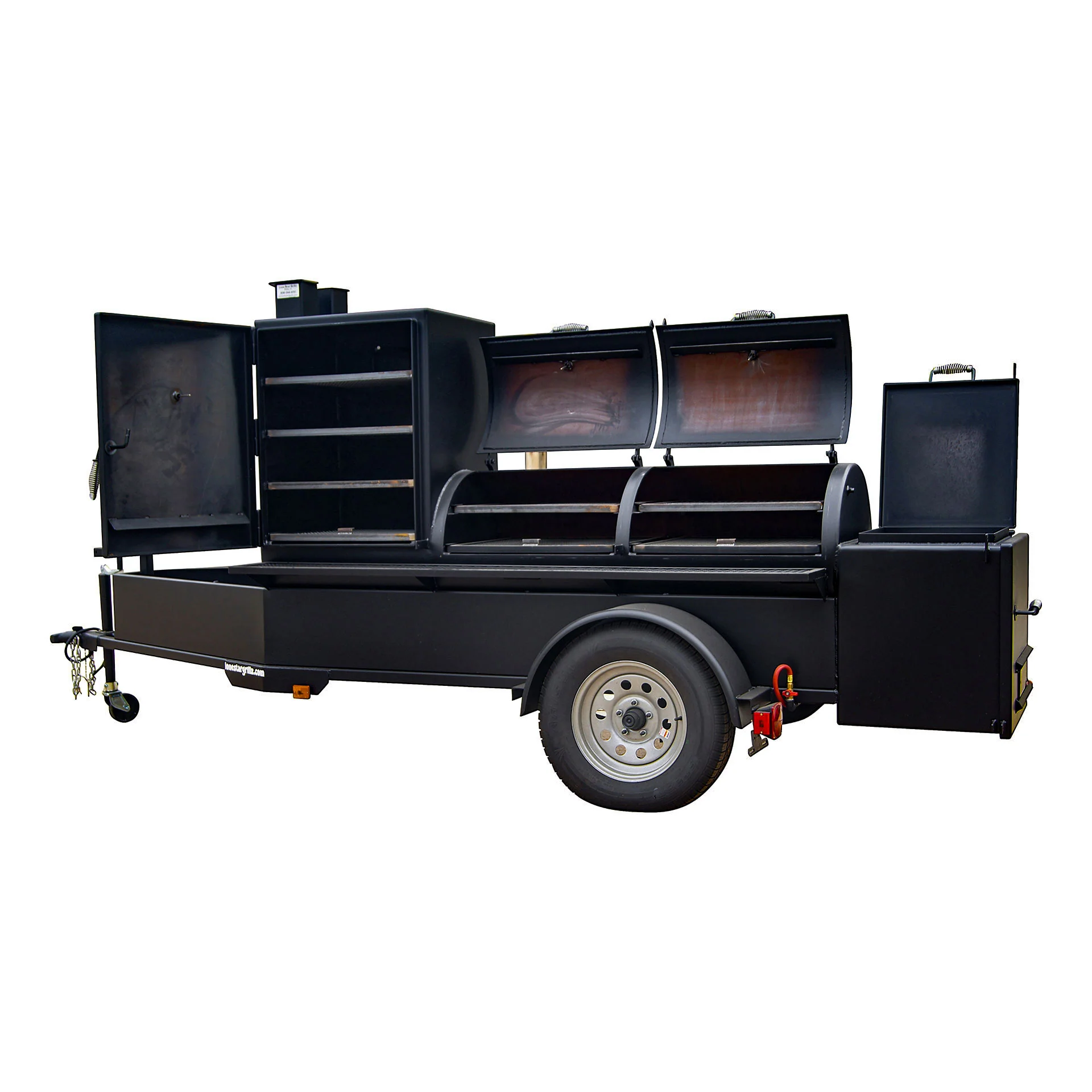

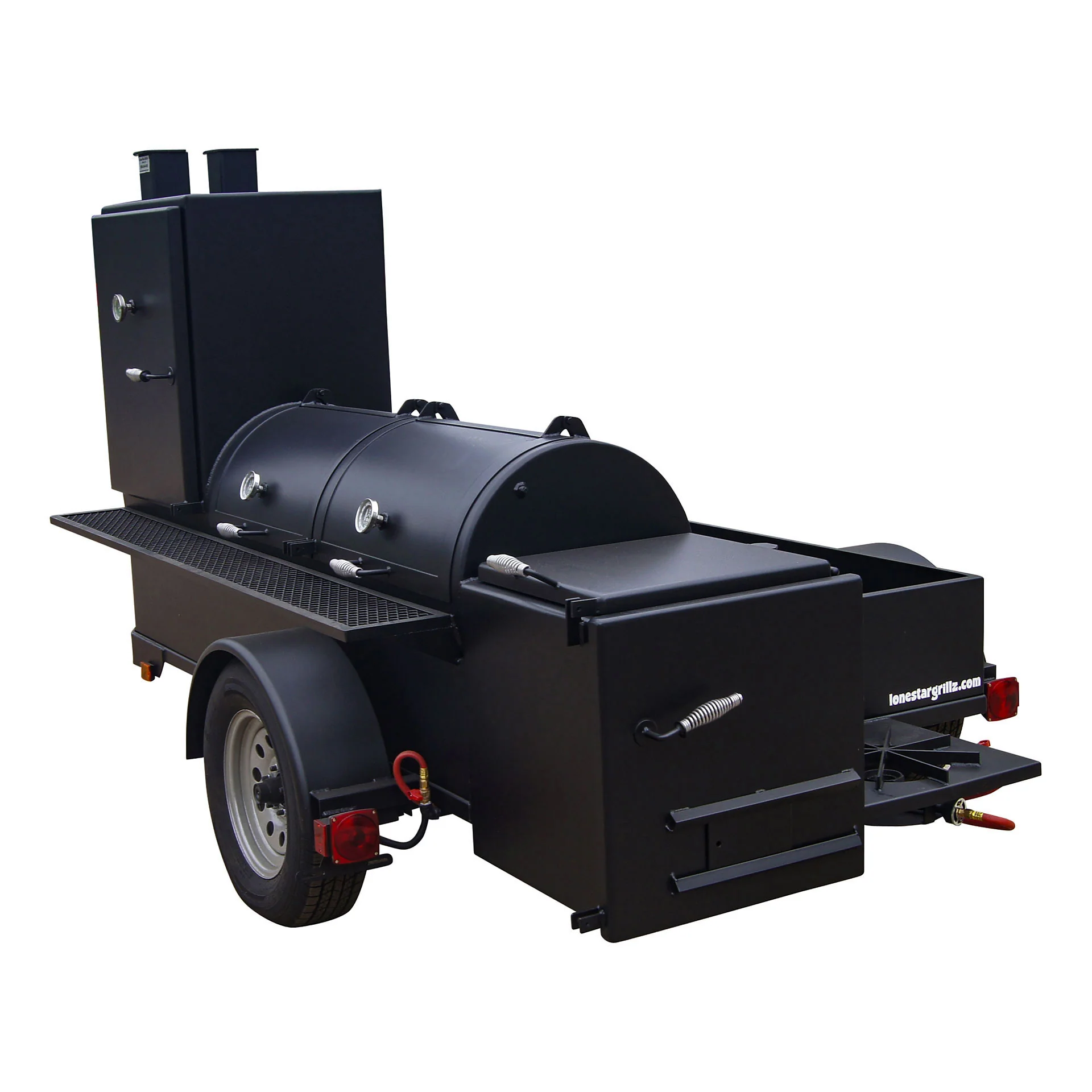

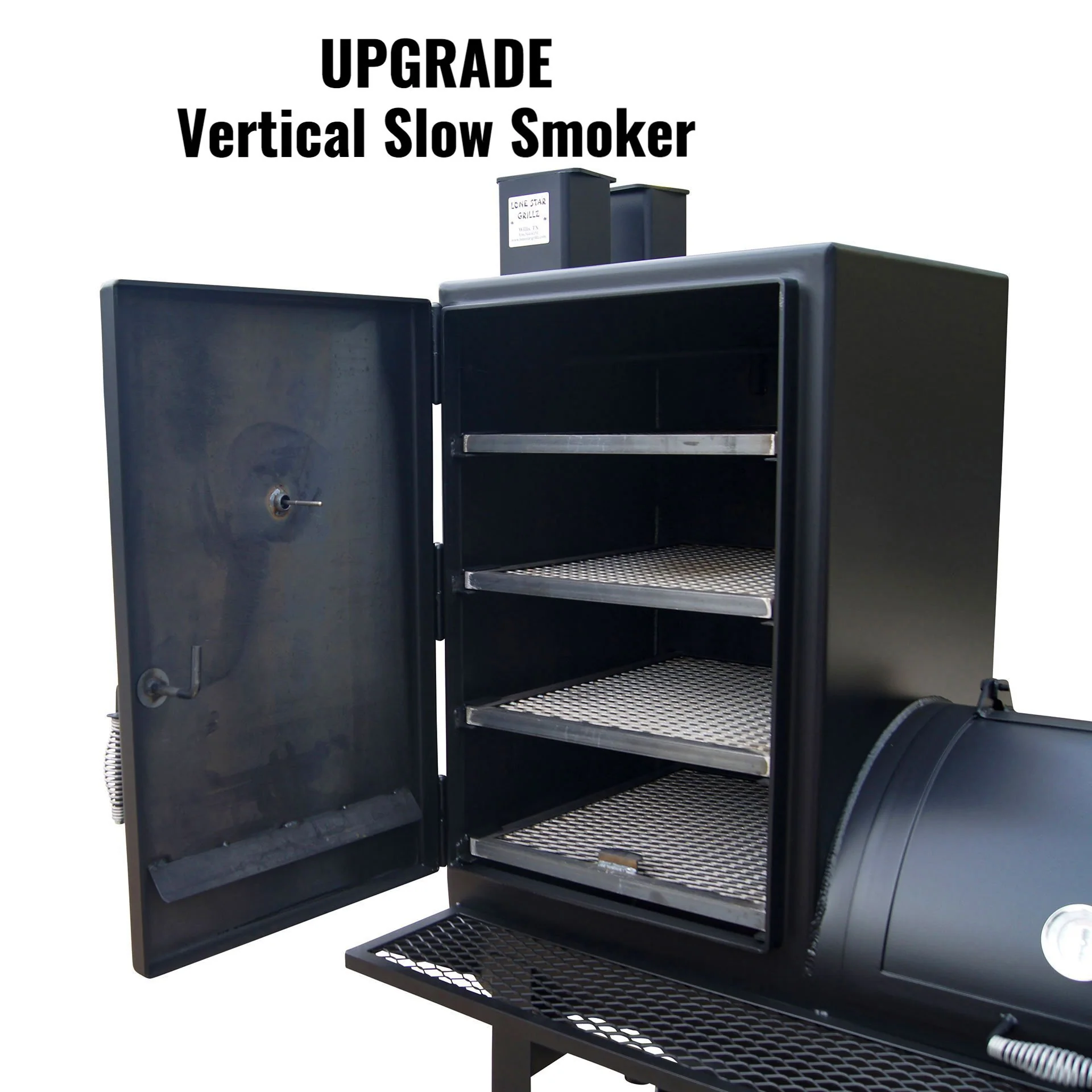

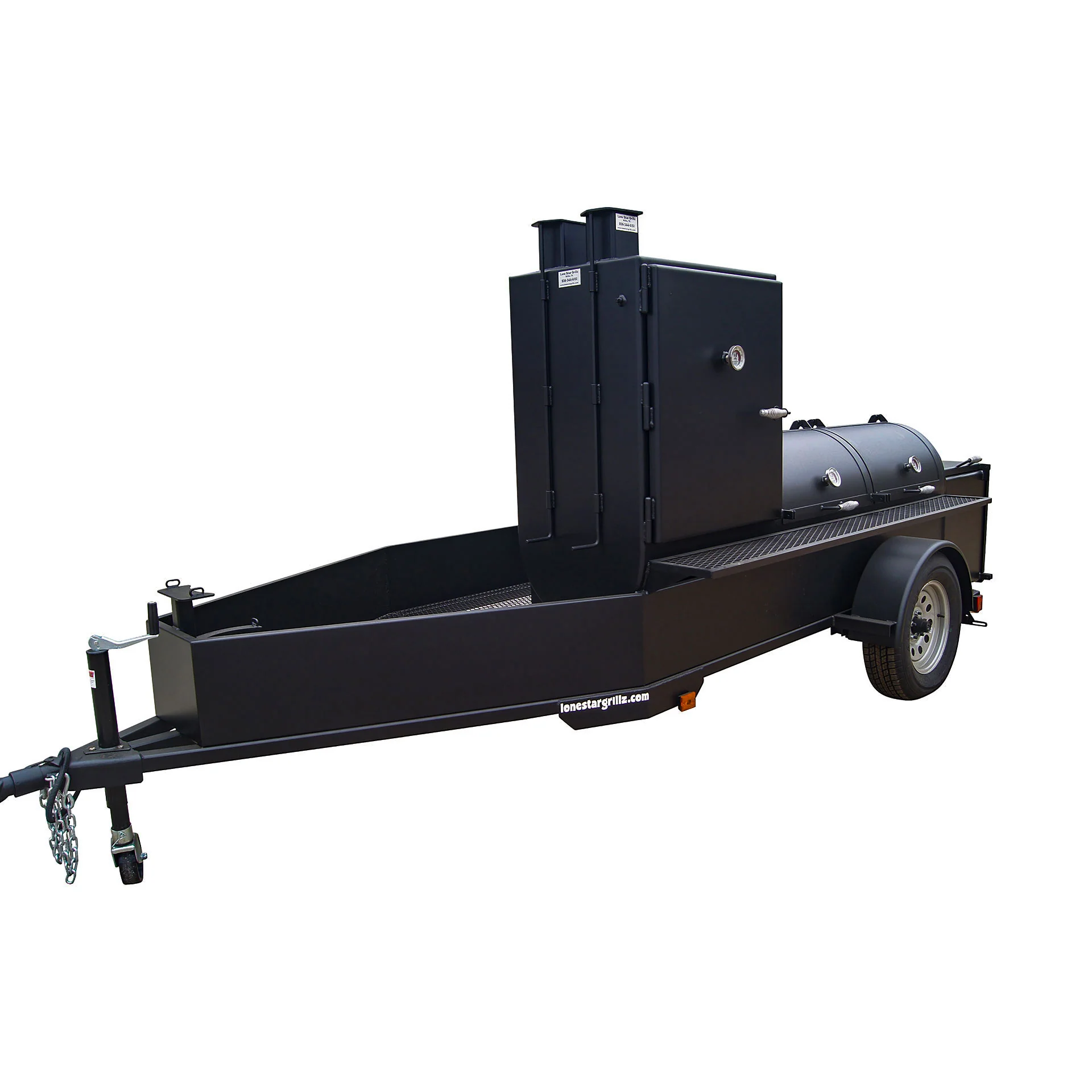

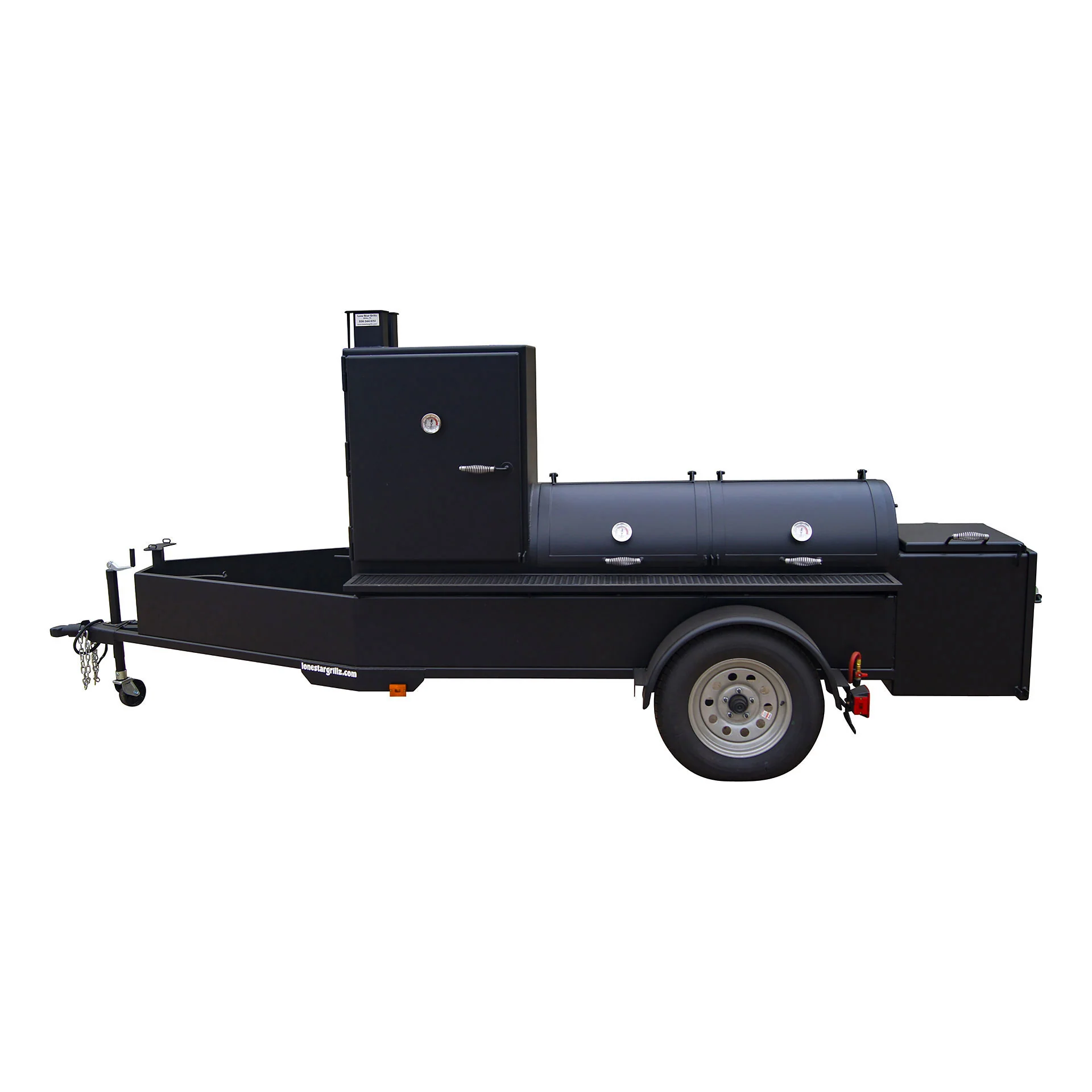

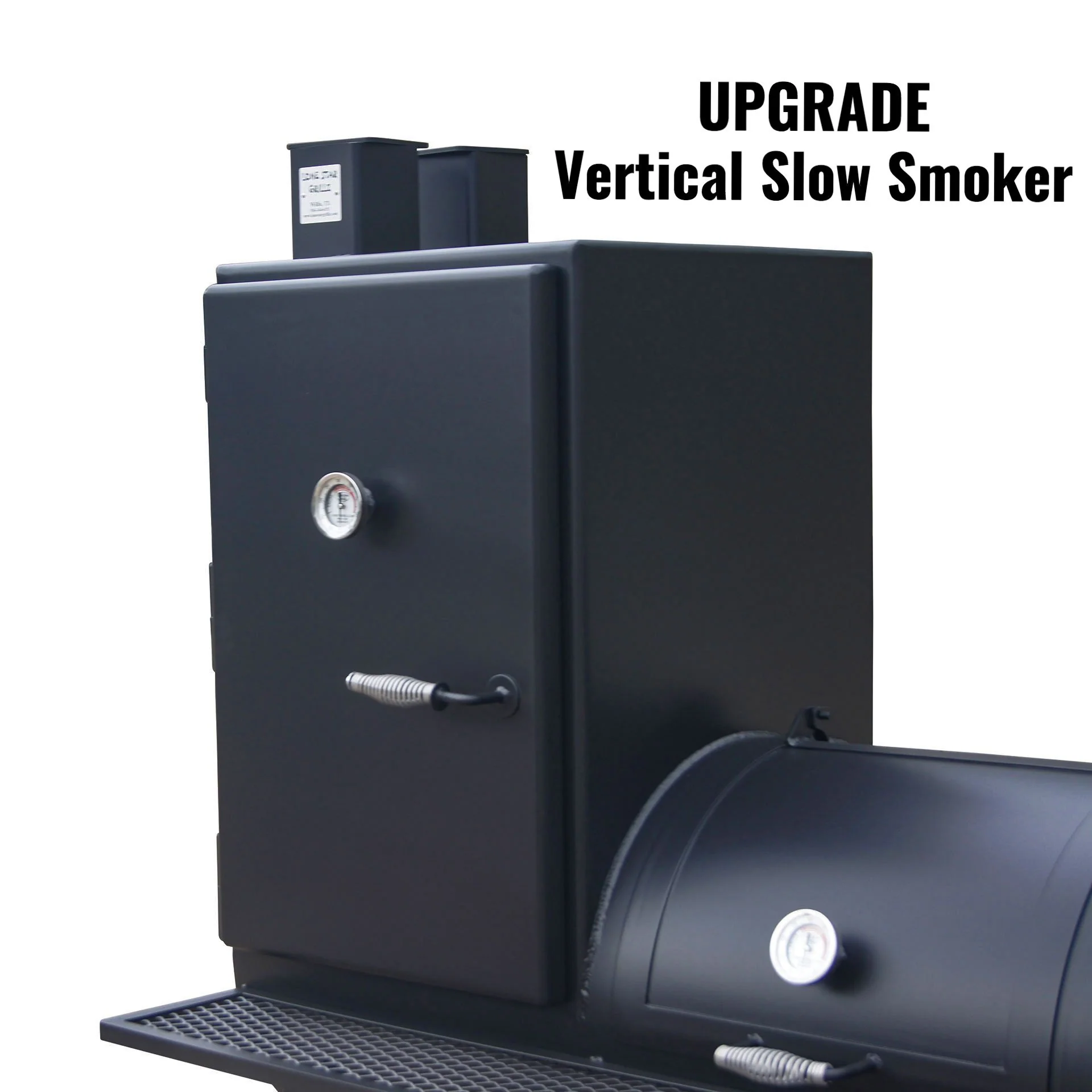

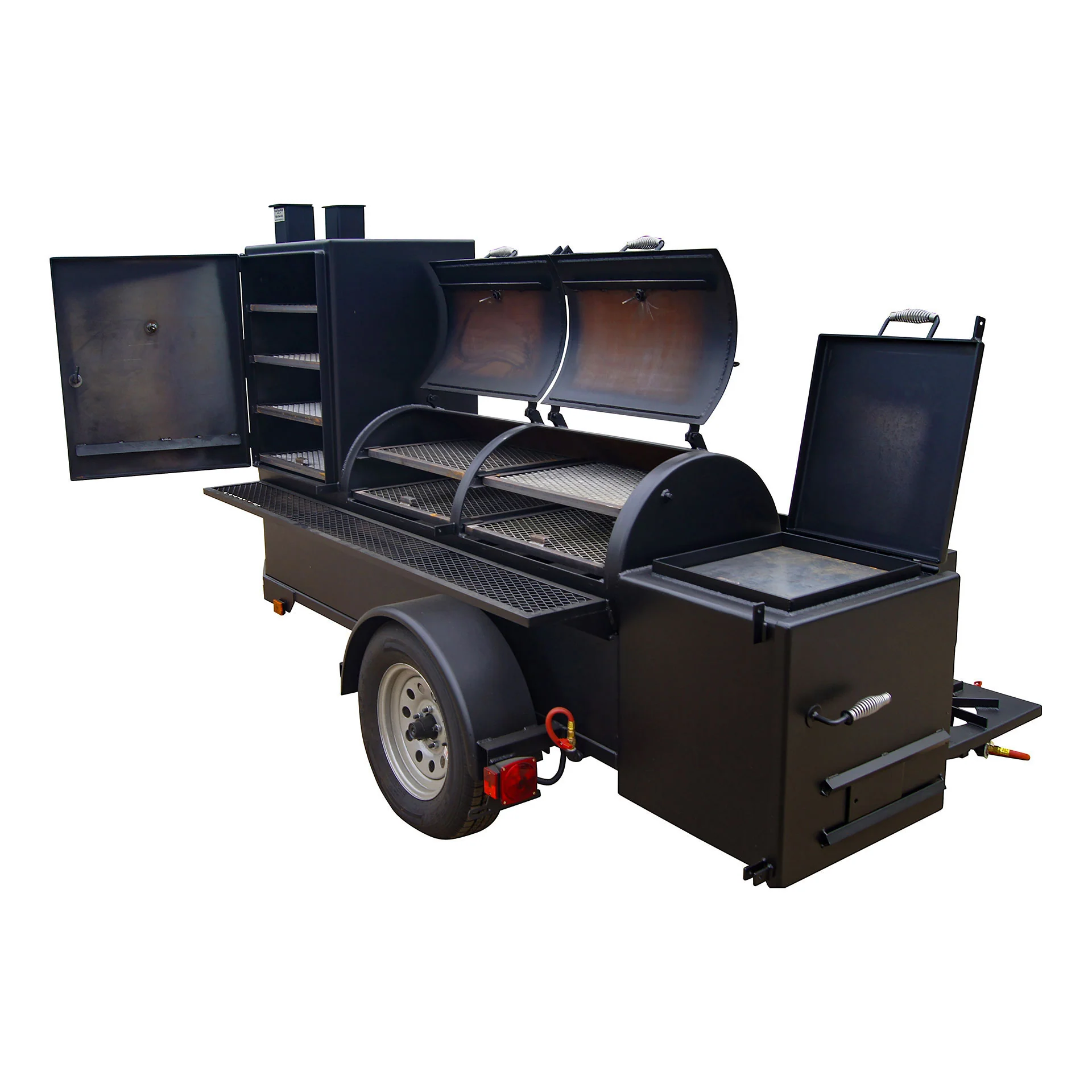

24" x 60" Trailer Pit with Vertical Slow Smoker

Overall Dimensions:

180" length x 82" width x 78" height

1/4" thick wall pipe

Double Door Main Chamber Dimensions:

24" diameter x 60" length

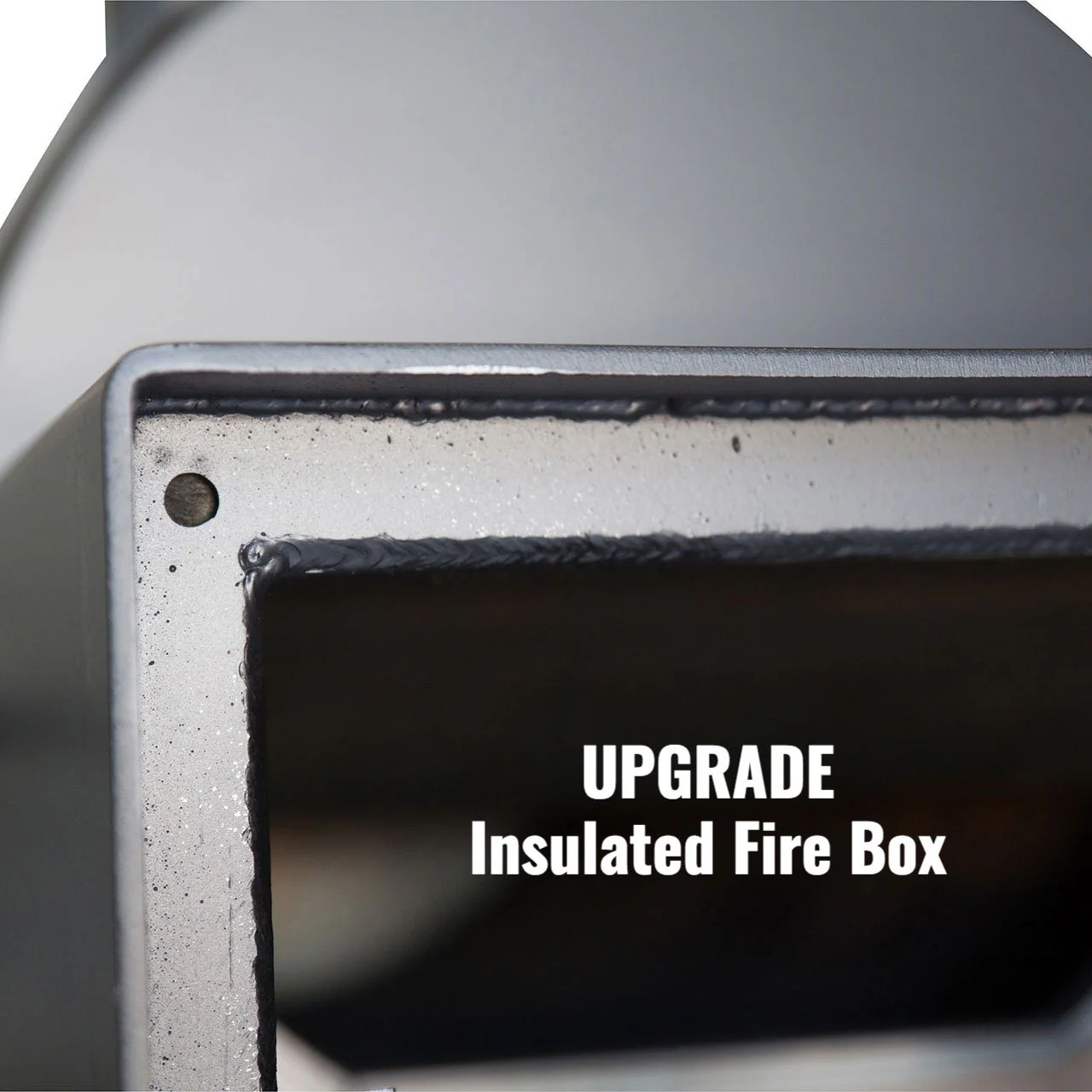

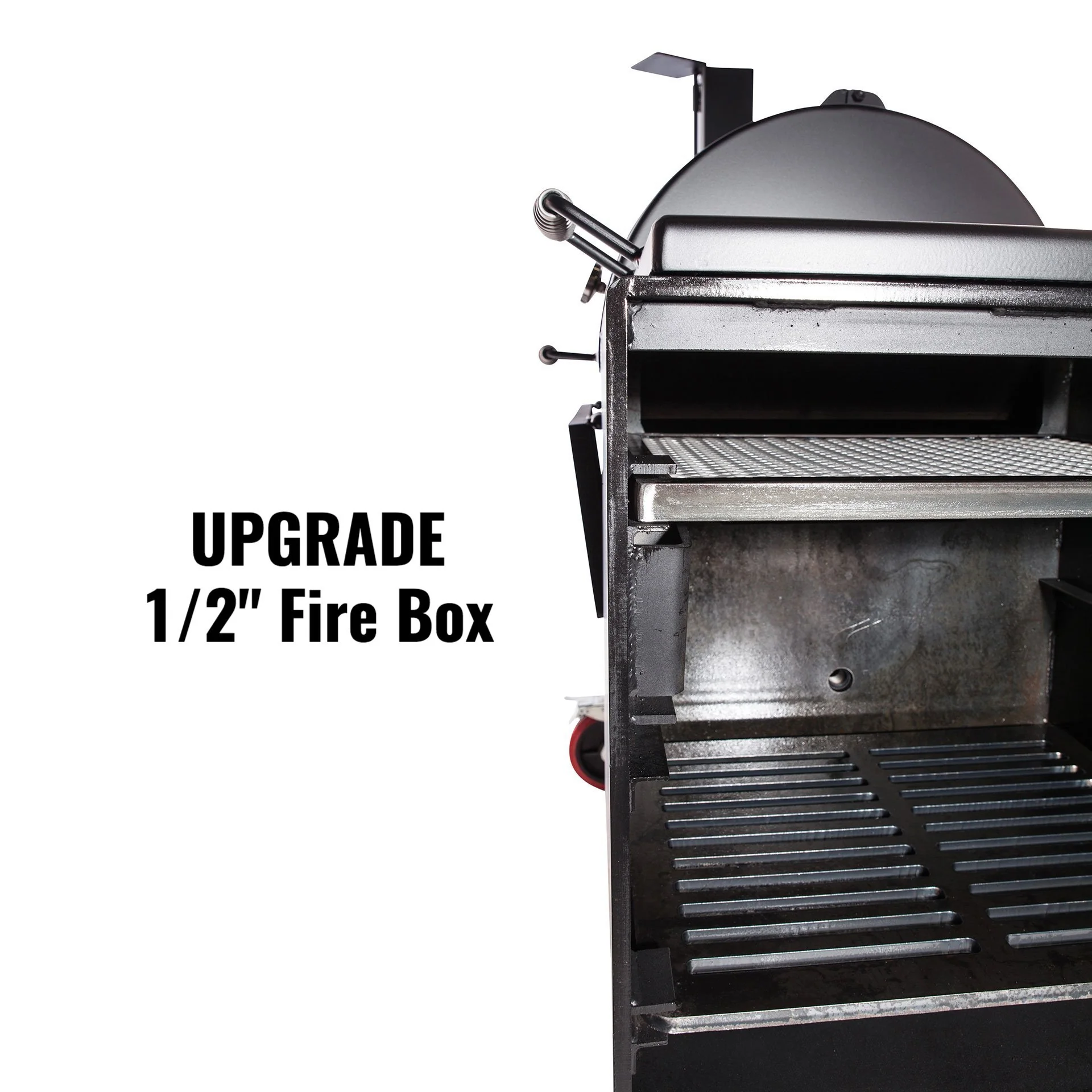

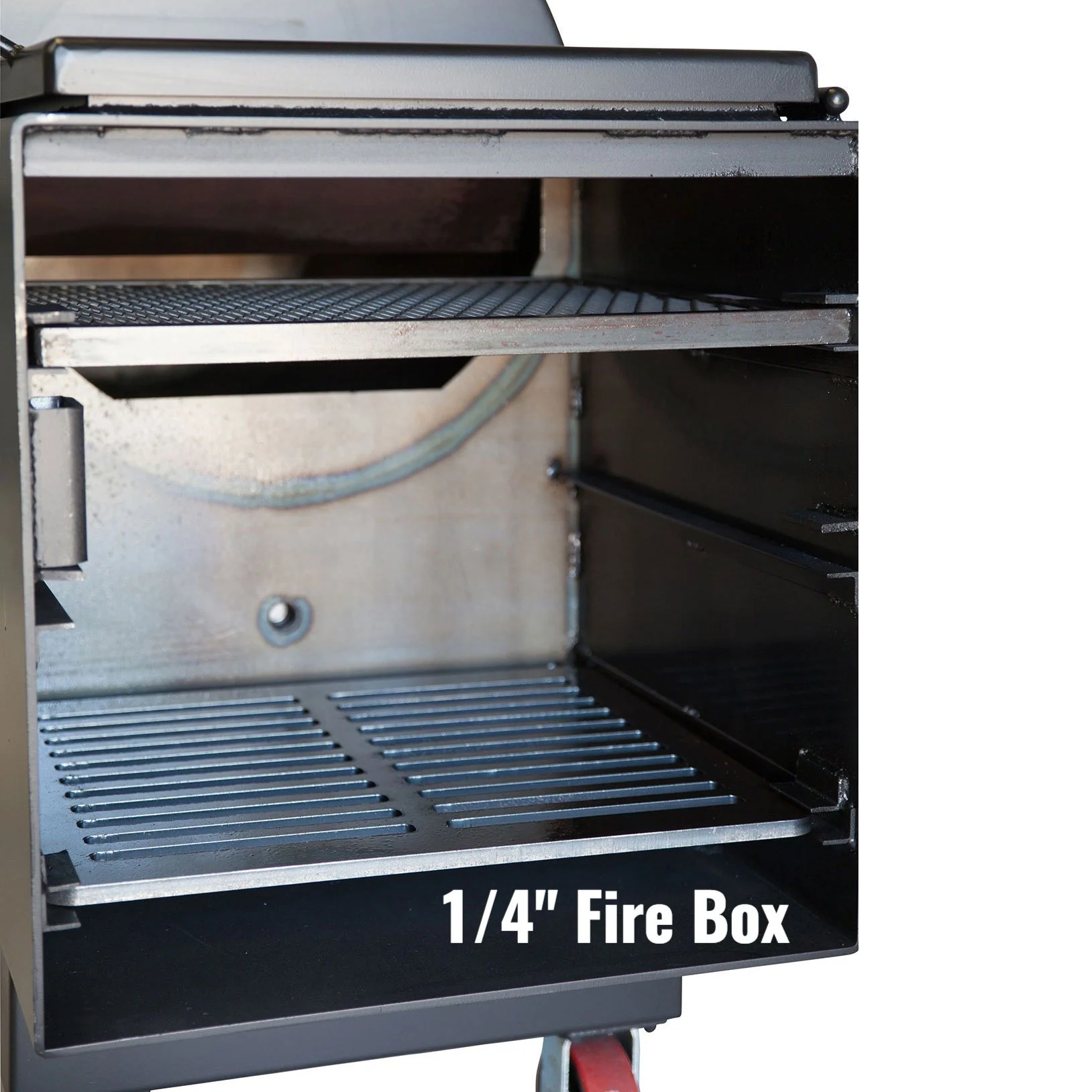

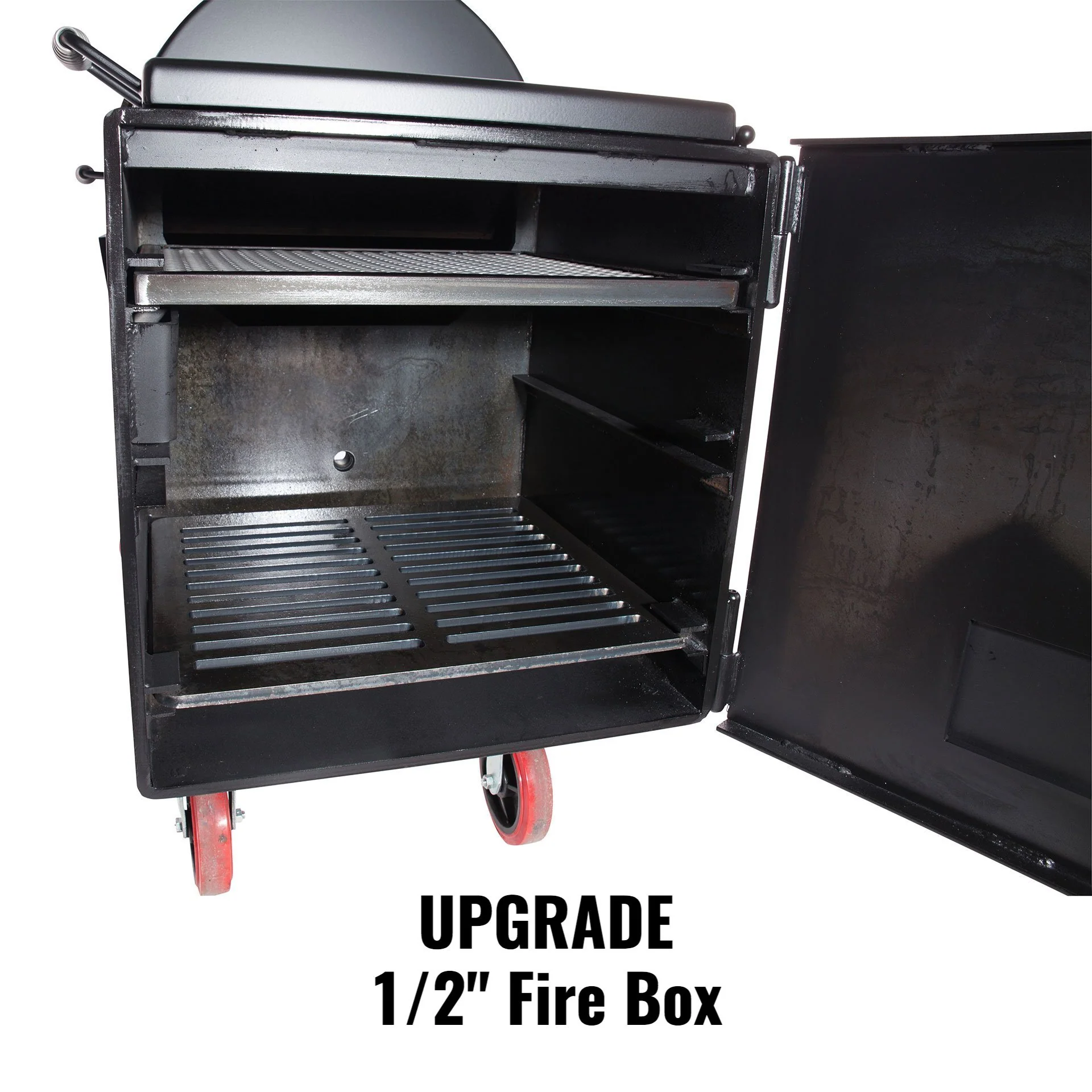

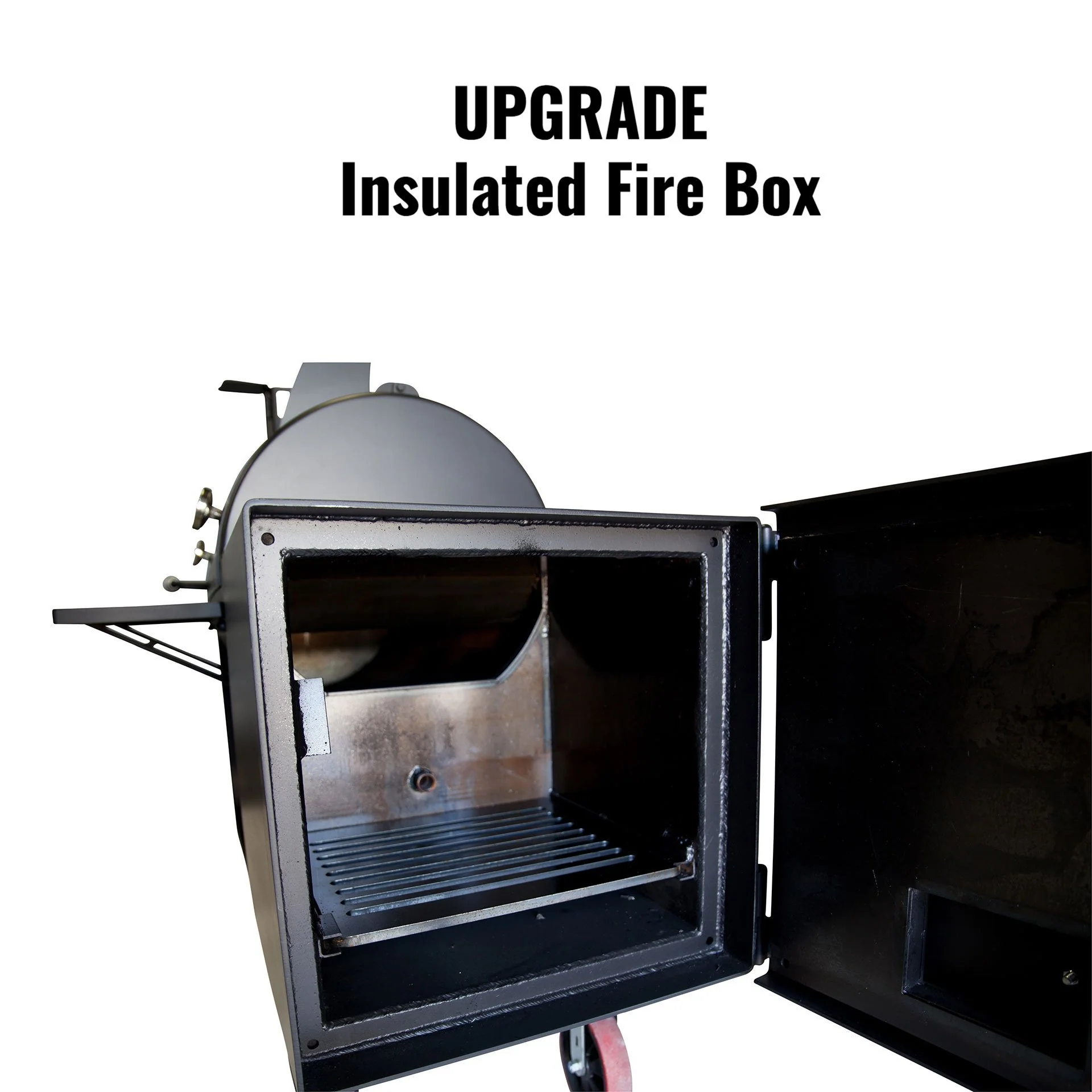

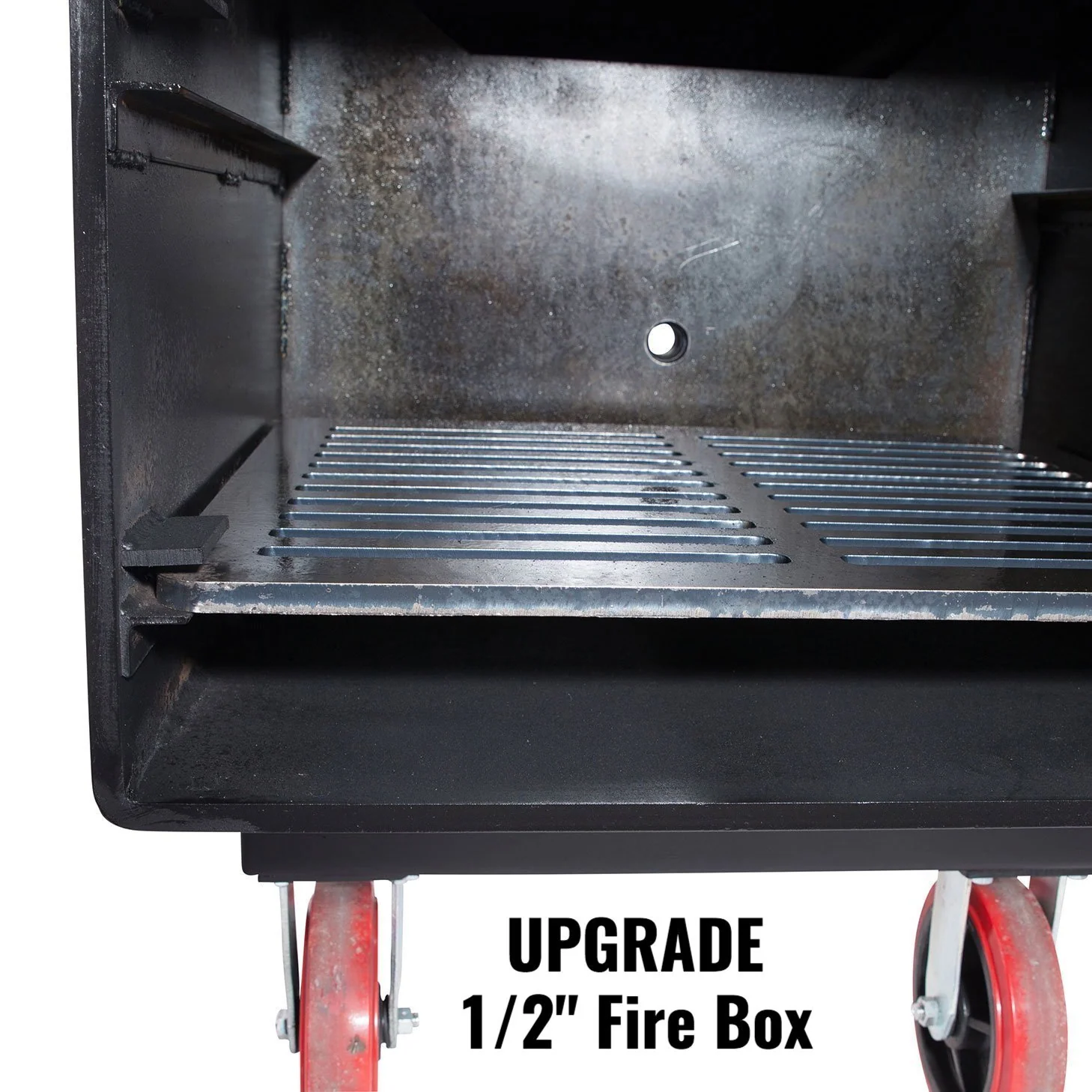

Square Fire Box Dimensions:

24" x 24" x 22"

Product Details:

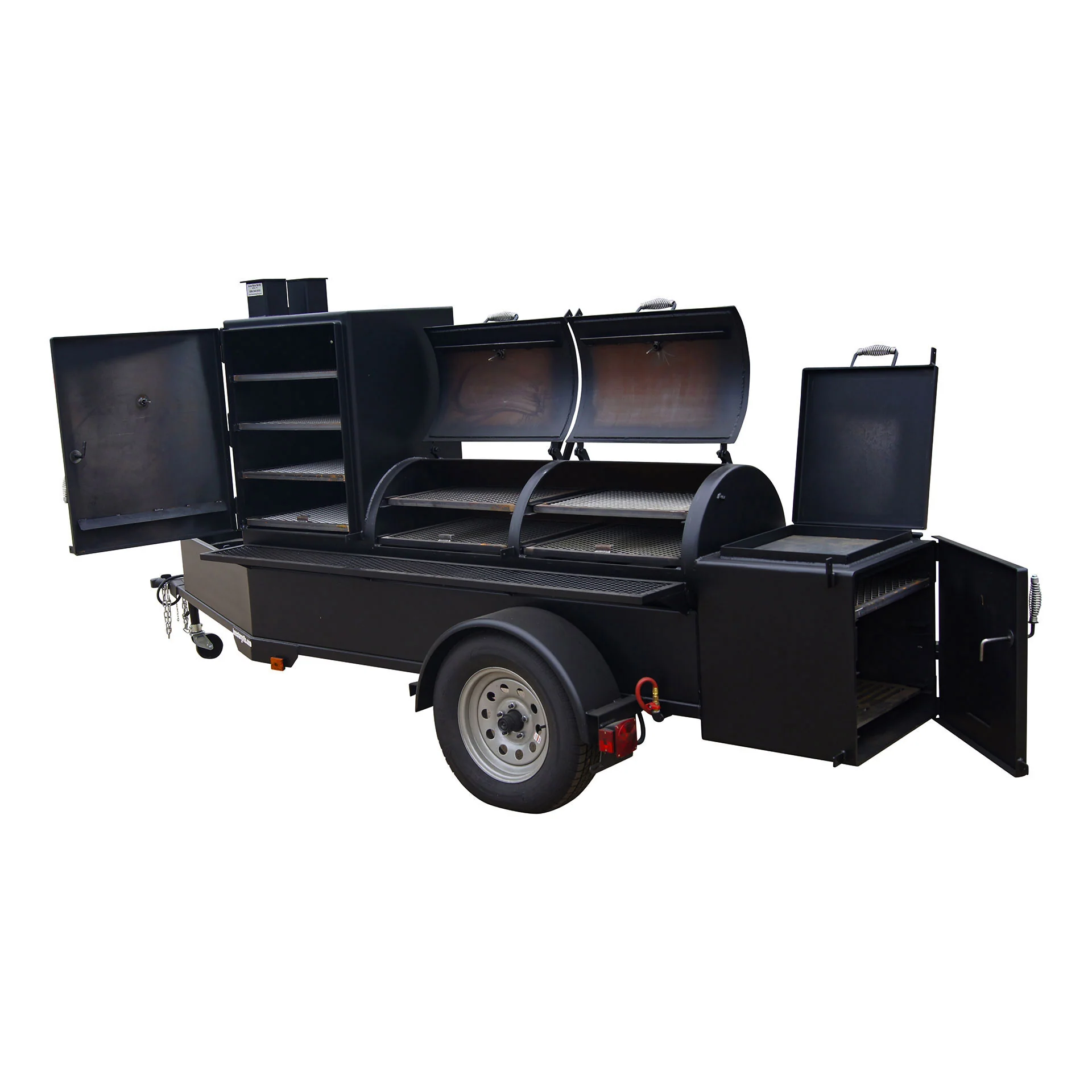

• 4 sliding/pull-out 1" food trays framed with angle in the main chamber
• One 22" x 22" sliding/pull-out food tray framed with angle in the fire box (adjustable)
• Fully flanged double doors to keep your heat inside main chamber

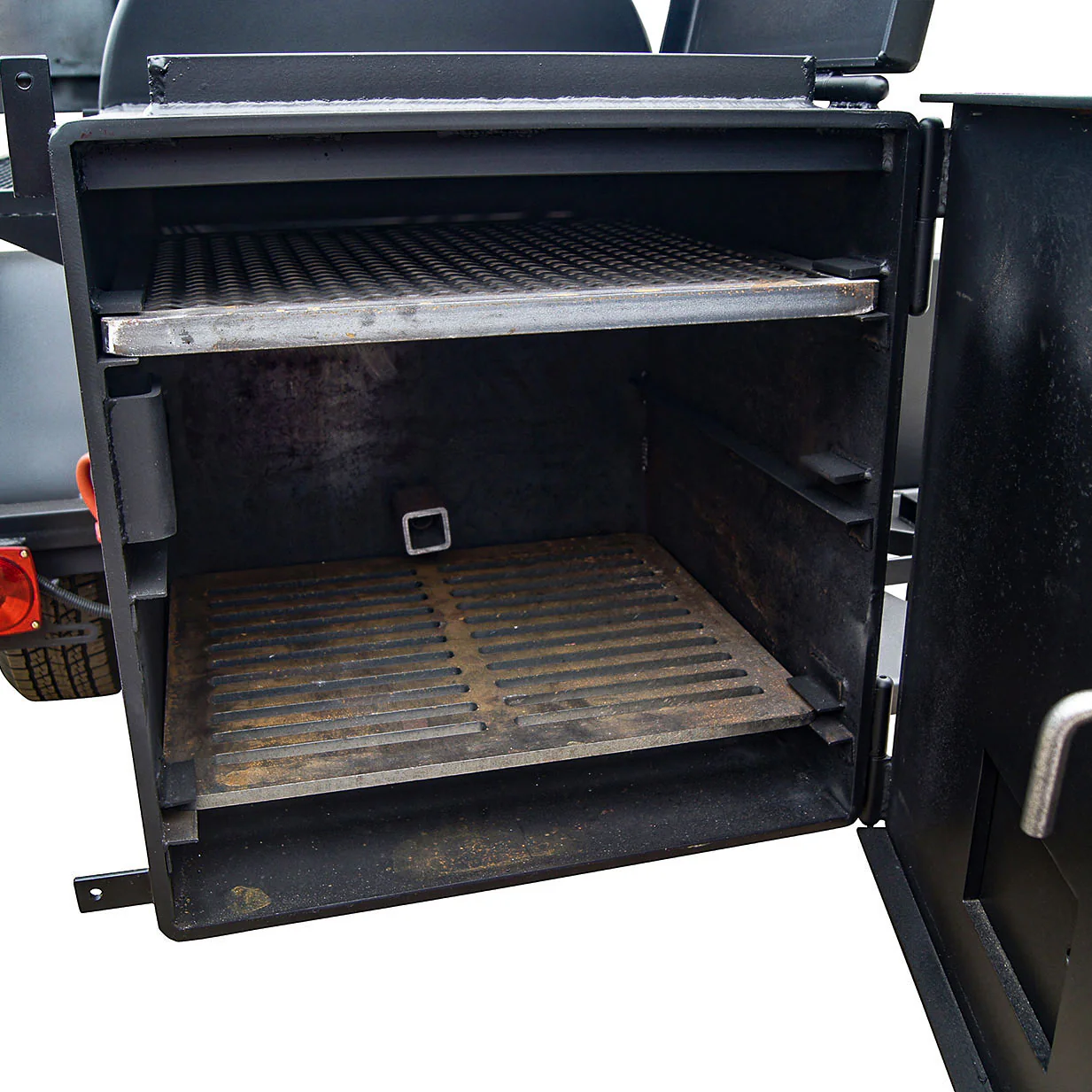

• 1 heavy-duty slide out wood/charcoal grate, double flanged grill top door with sliding adjustable pull-out food grate for grilling
• Heat deflector
• Lockable, adjustable tuning plates to keep the temperature even from one side to the other
• 2 Tel-Tru stainless steel temperature gauges
• Stainless steel cool-touch handles
• 2 15" painted wheels
• 1 1/4" drain with steel cap
• Fire box includes propane log starter

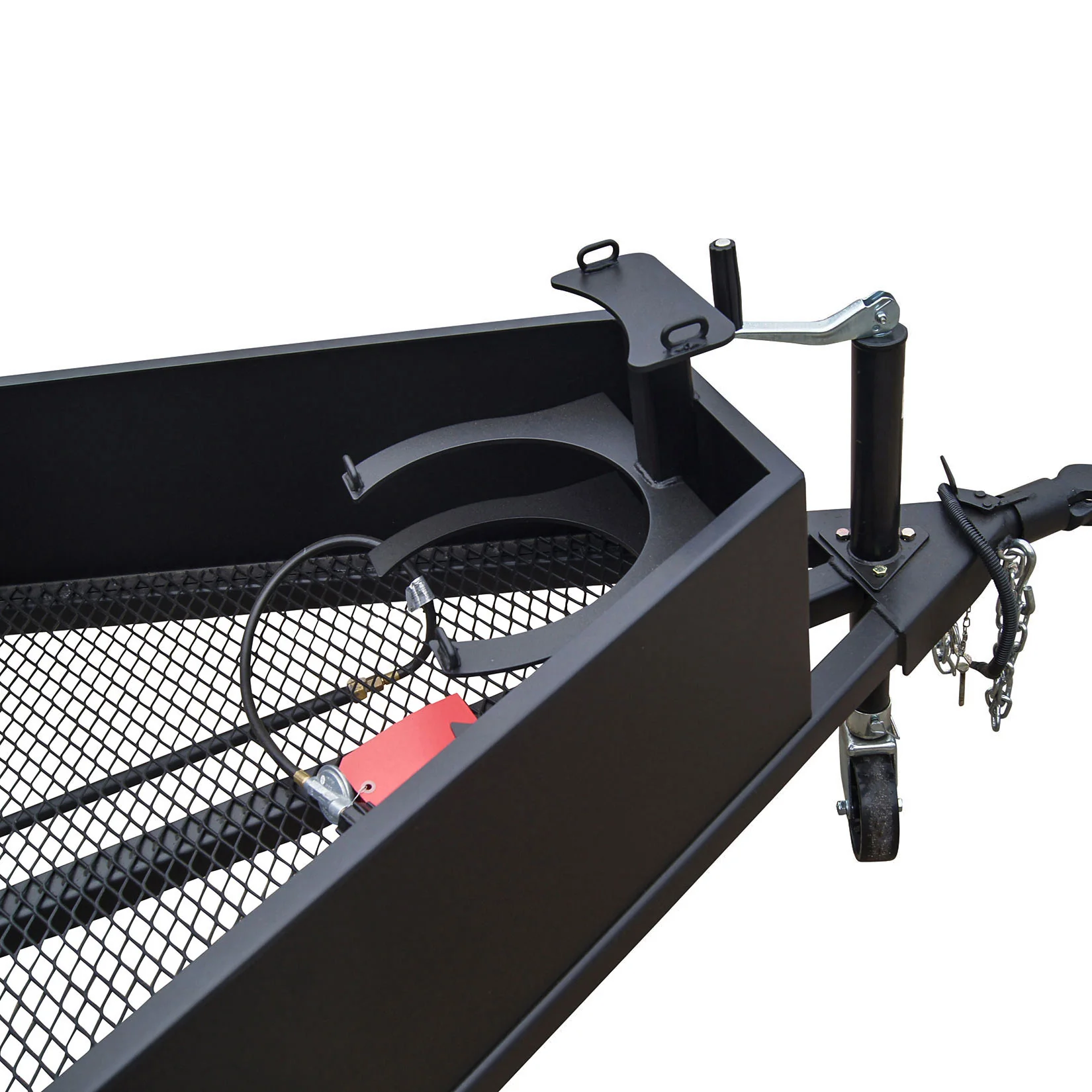

• Lockable propane tank holder
• Painted with three coats of high heat paint
• Double adjustable 5" smoke stacks
• Total cooking area 4800 sq/in.
• 10"x 84" front framed prep table
• 36" x 84" x 12" tall rear storage for your wood, ice chest, or anything you want and extending all the way to the front of the trailer
• 3500 lbs axle
• 2" bulldog style trailer coupler
• Custom trailer framed in 2" x 2" x 1/4" thick square tubing and welded construction
• Complete with all wiring (completely hidden inside frame) and light kit
• 1 propane low pressure burner
• Painted black

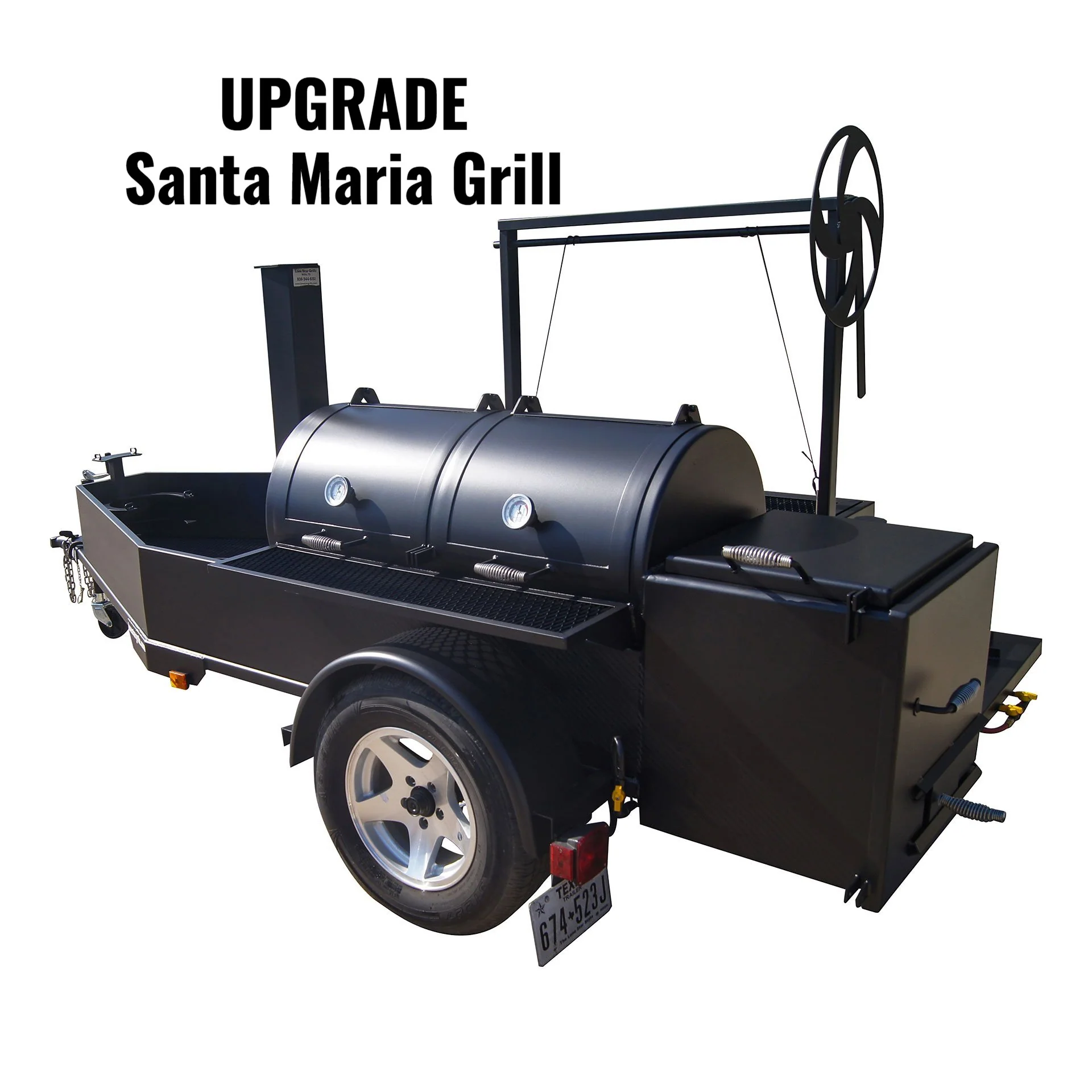

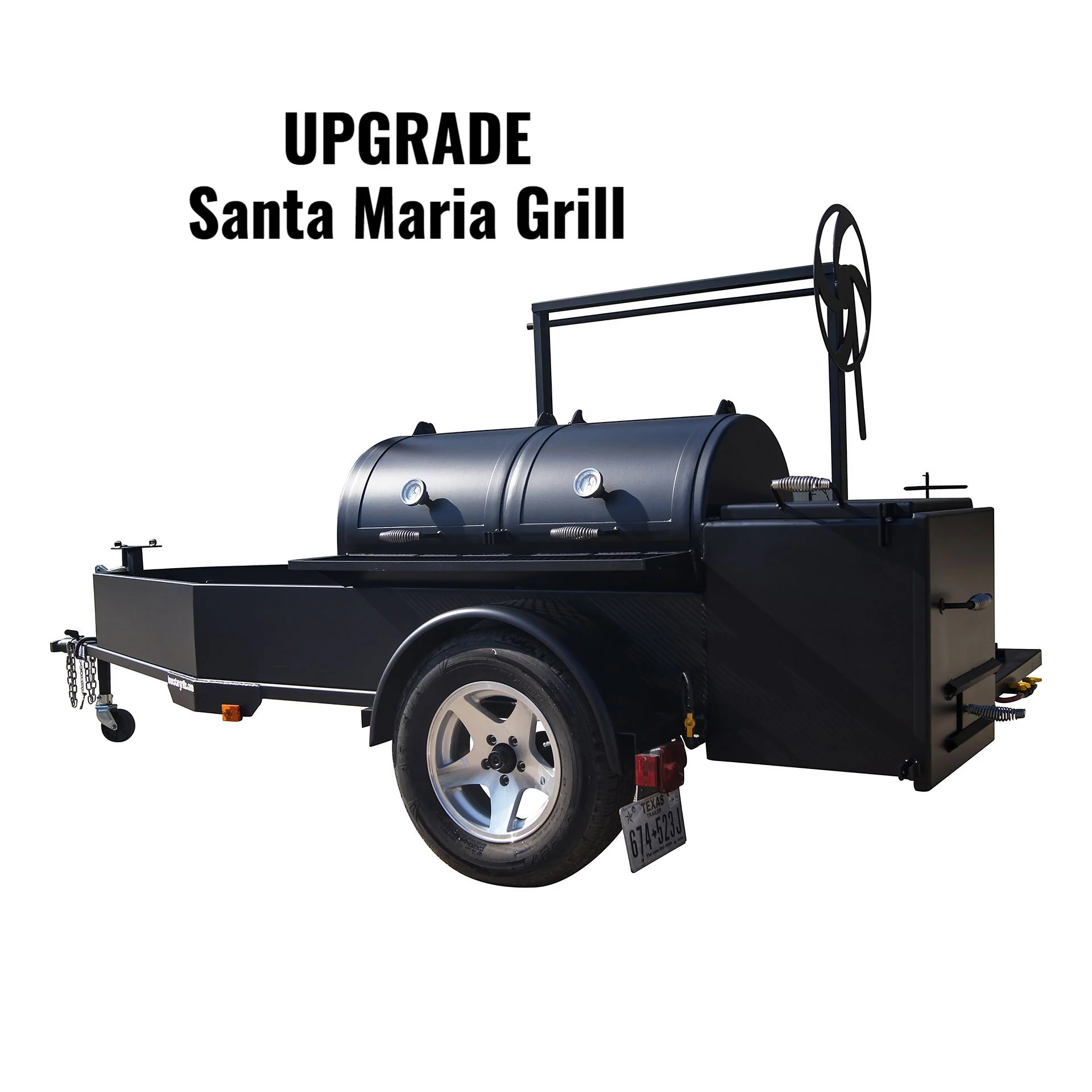

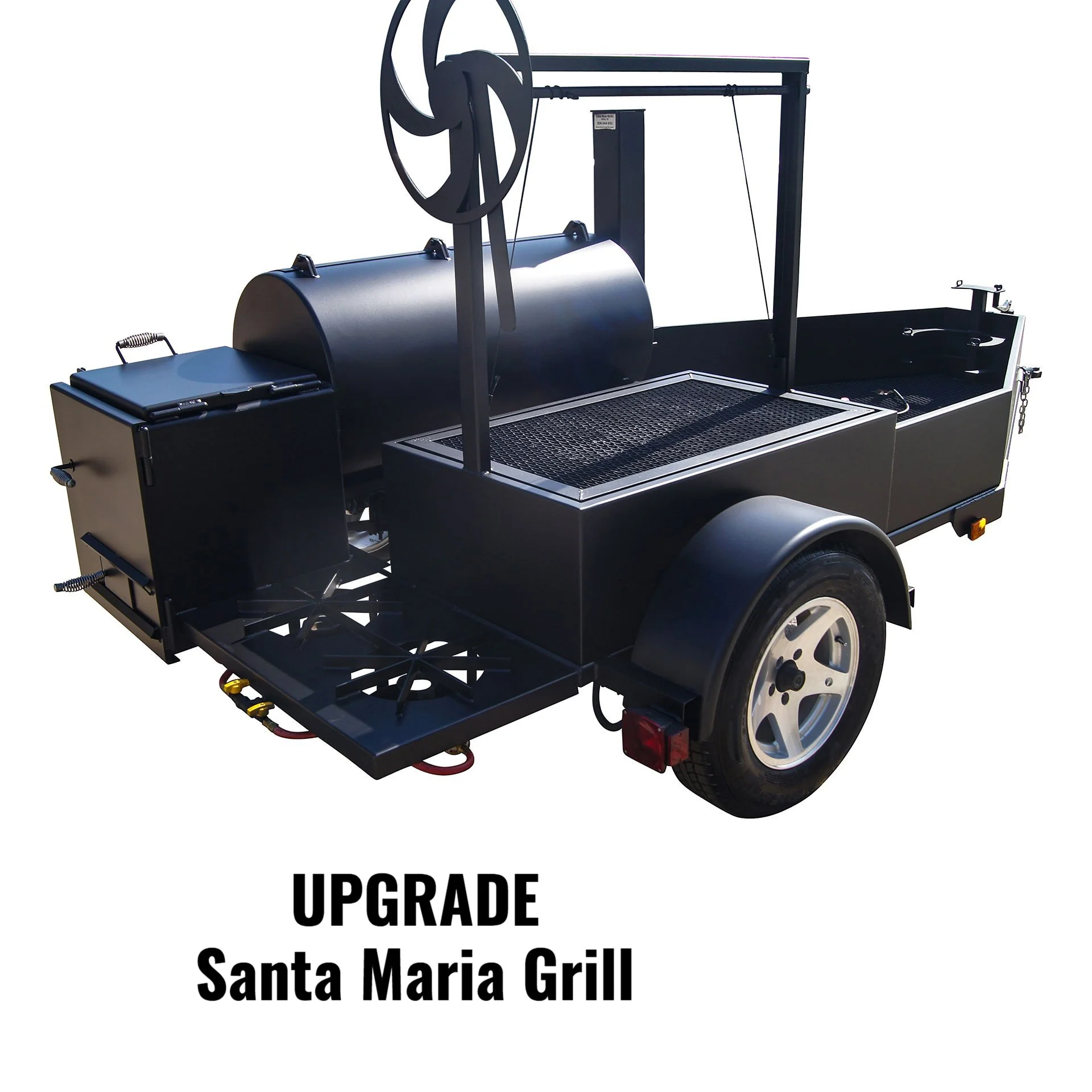

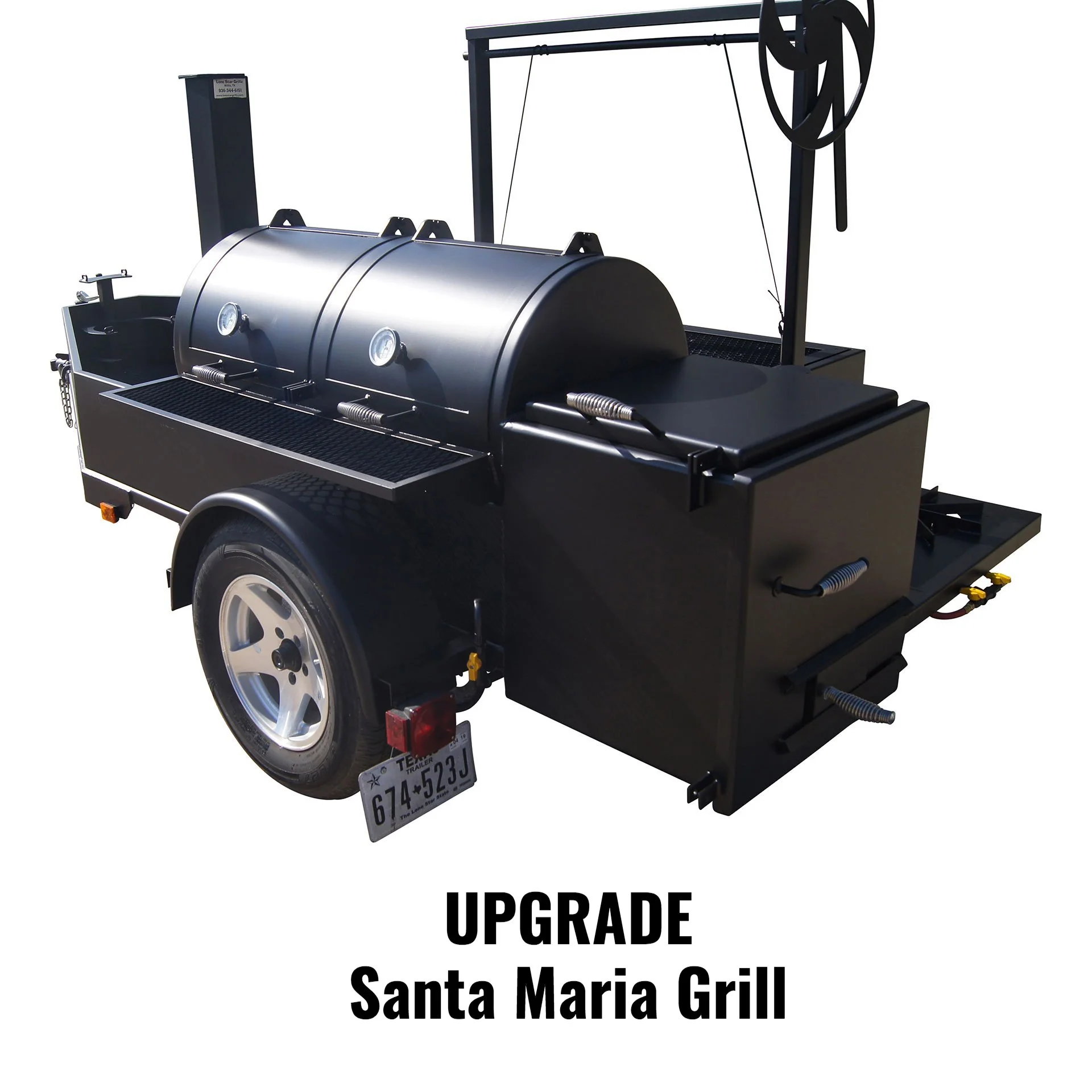

• Optional Santa Maria dimensions are:Grate dimensions are 30.5'' x 26.25'' for the 36'' model, 42.5'' x 26.25'' for the 48'' model, 54.5'' x 26.25'' for the 60'' model, 66.5'' x 26.25'' for the 72'' model & the outside grill dimensions are 34.25'' x 29.25'' for the 36'' model, 46.25'' x 29.25'' for the 48'' model, 58.25'' x 29.25'' for the 60'' model, 70.25'' x 29.25'' for the 72'' model

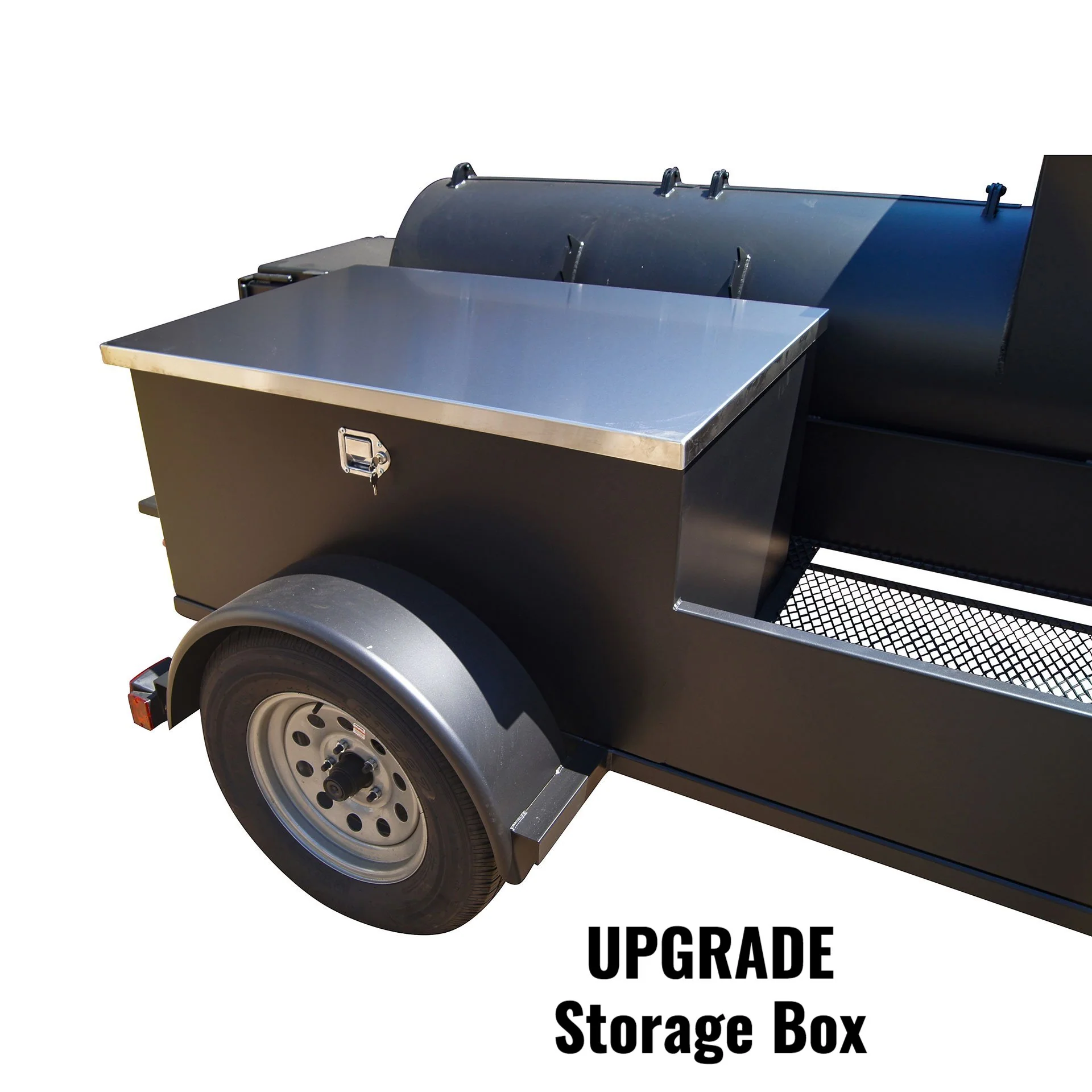

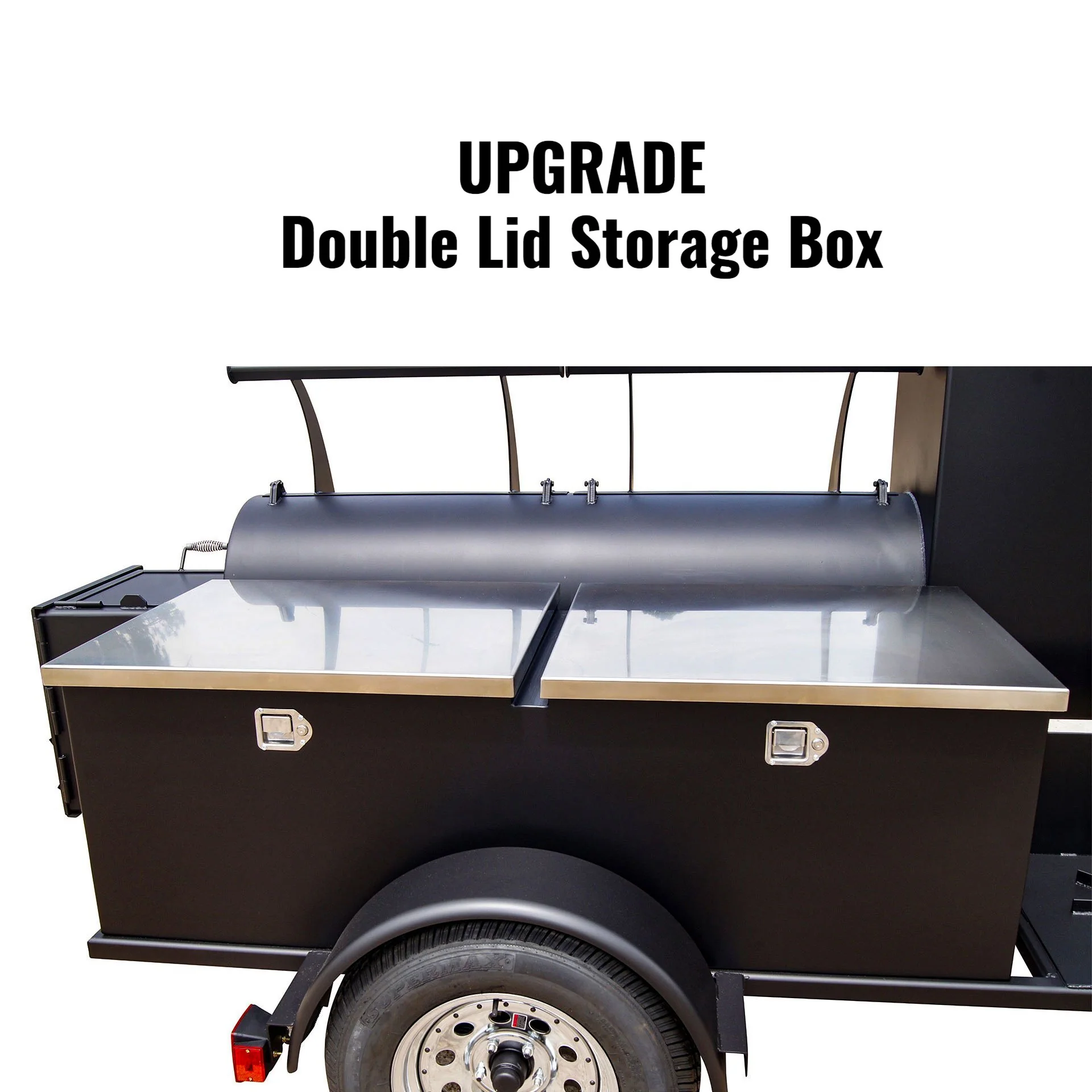

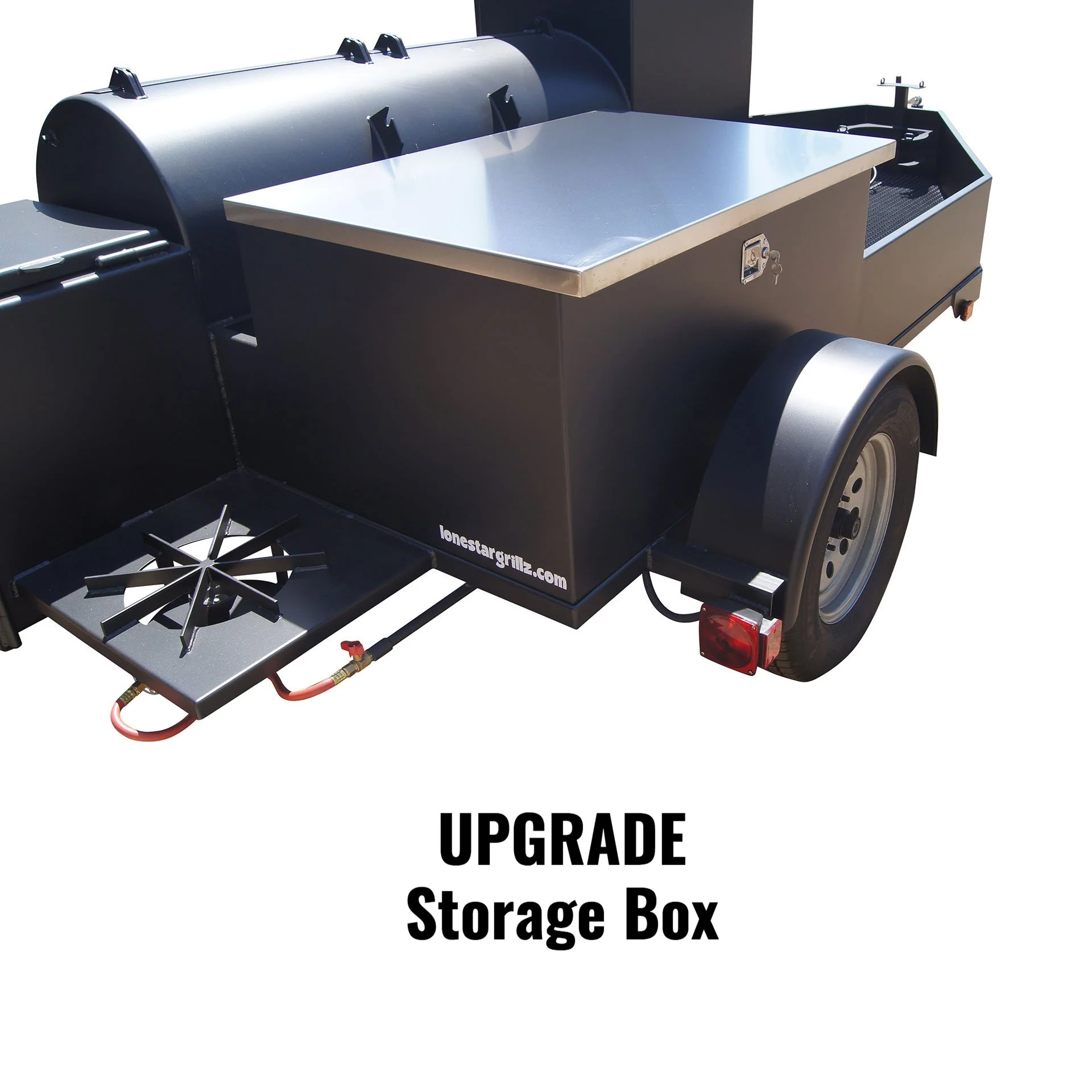

• Optional Storage Box dimensions are: 34.25'' x 30.25'' x 23.25'' for the 36'' model, 46.25'' x 30.25'' x 23.25'' for the 48'' model, 58.25'' x 30.25'' x 23.25 for the 60'' model, 70.25'' x 30.25'' x 23.25'' for the 72'' model

The main chamber can hold several gallons of water for steaming and keeping your food moist while smoking, also makes it nice for clean out once you're finished cooking.
