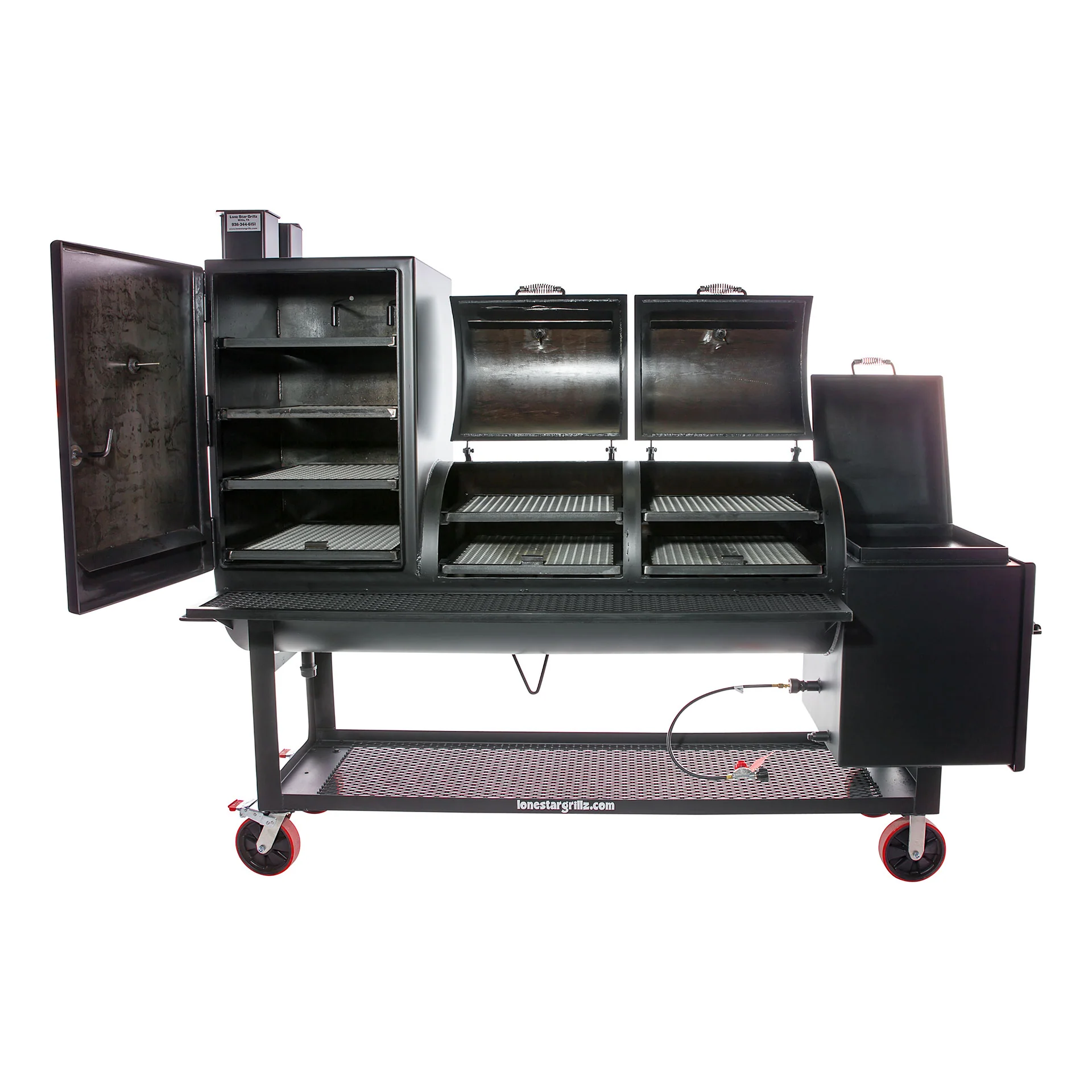

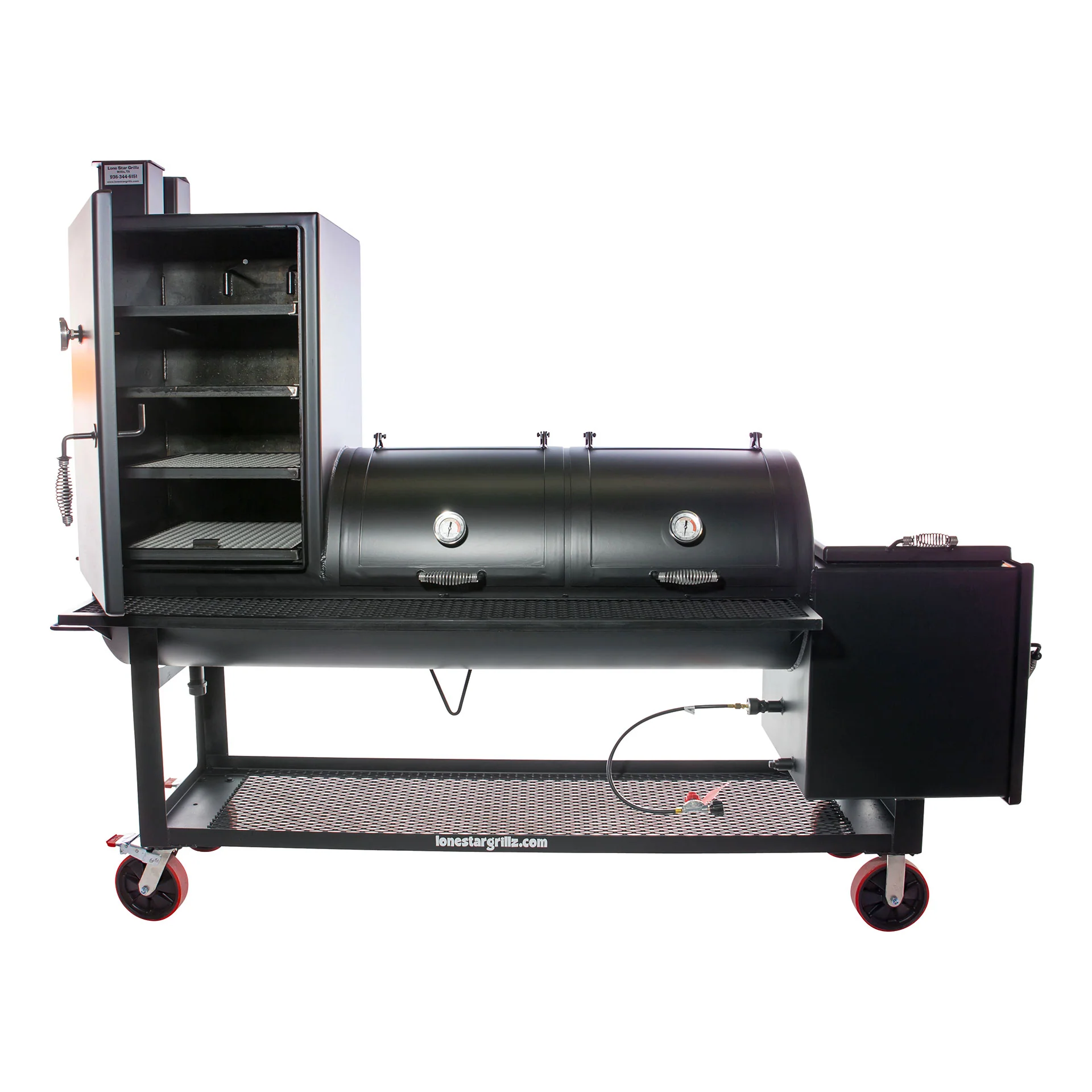

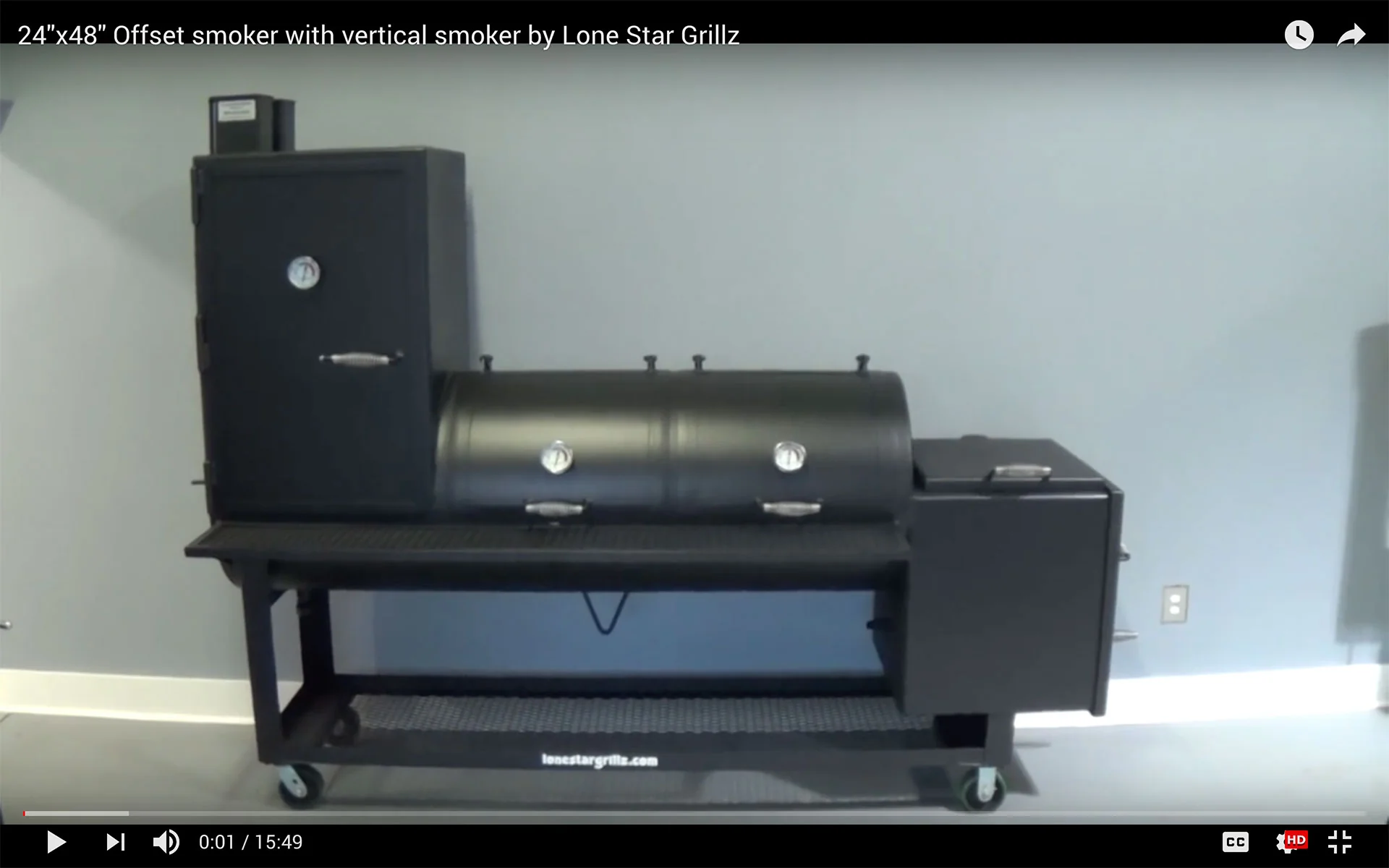

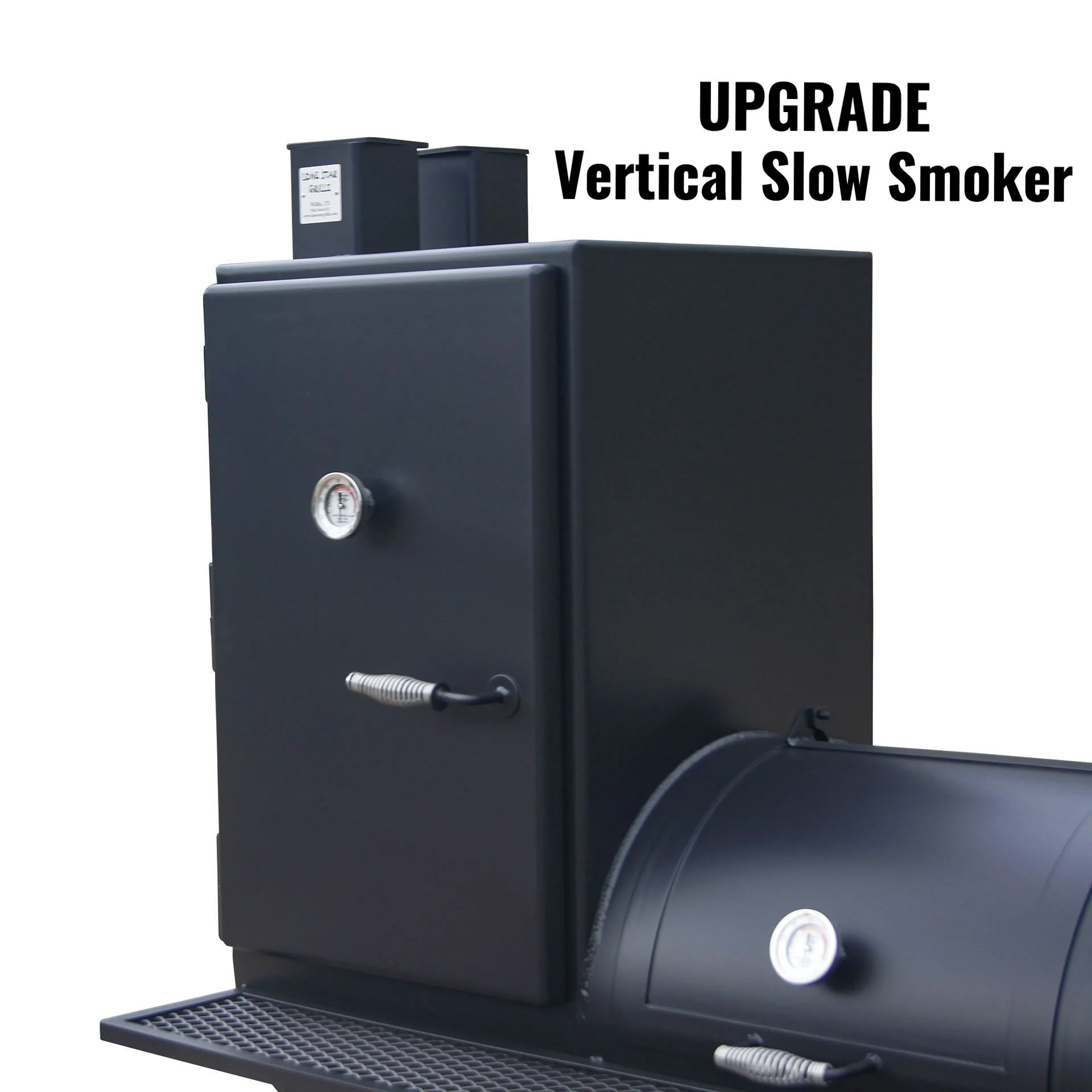

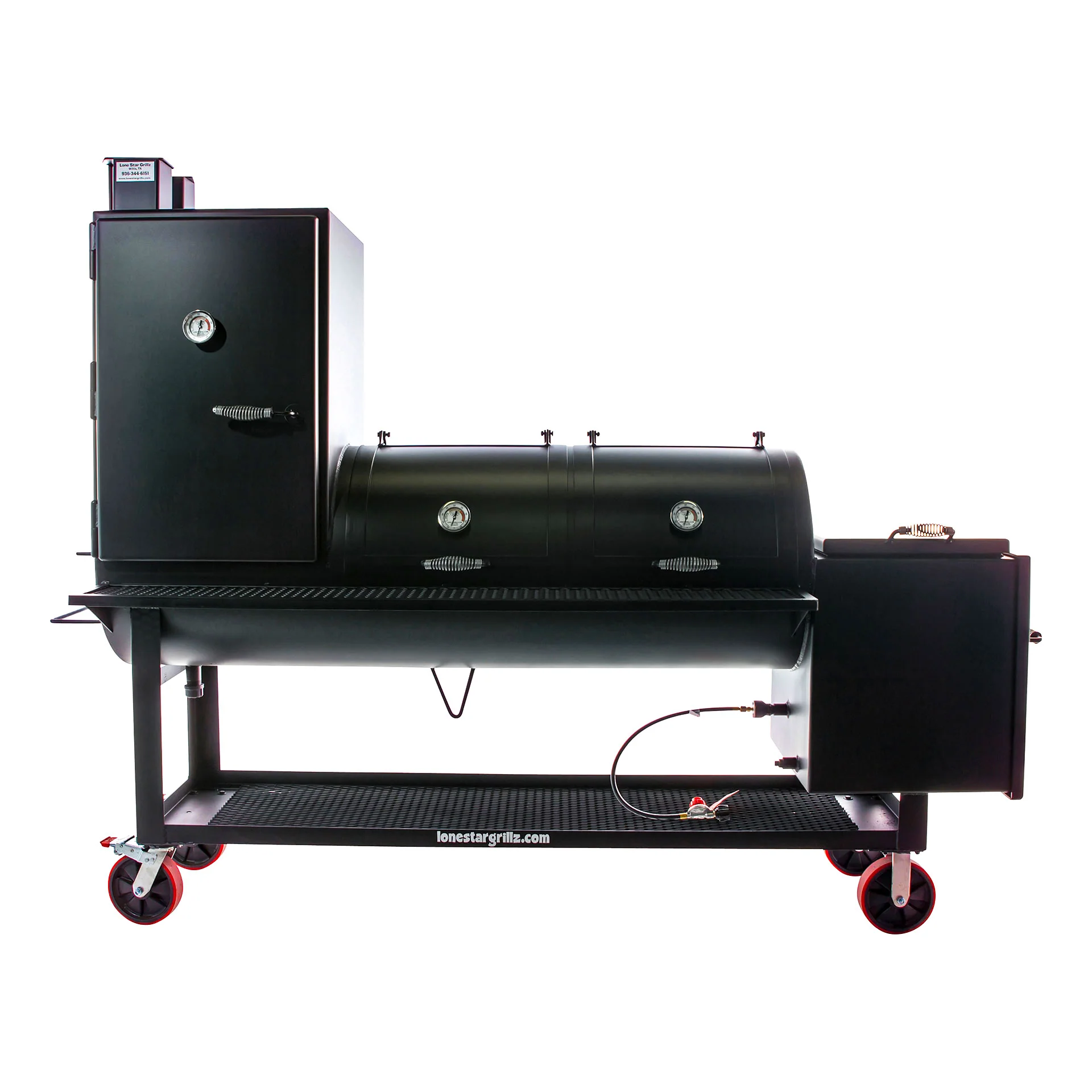

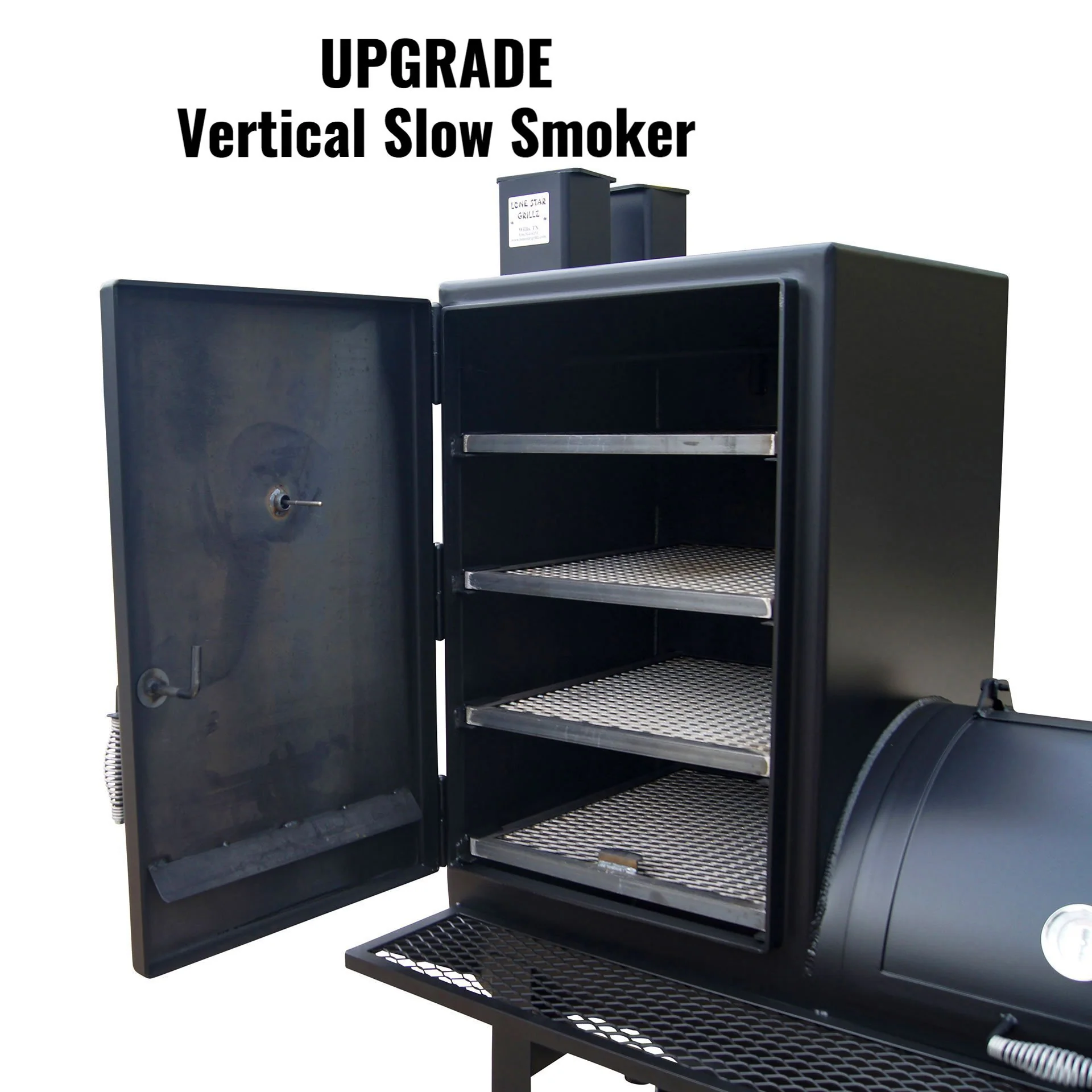

24" x 48" Offset Smoker with Vertical

Overall Dimensions:

98" depth x 34" width x 78" height

Constructed from 1/4" thick new wall pipe (included)

Cook Chamber Dimensions:

24" x 48"

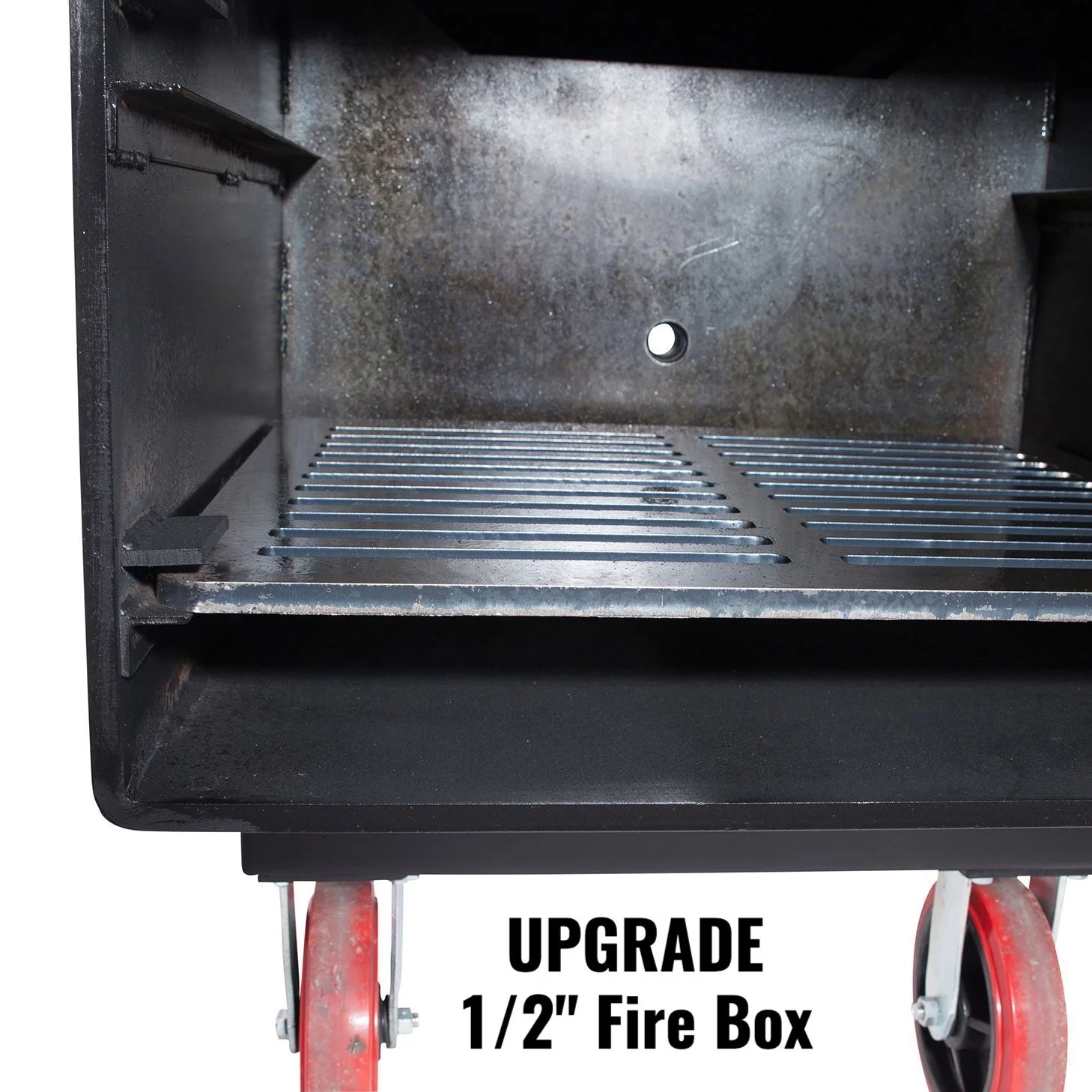

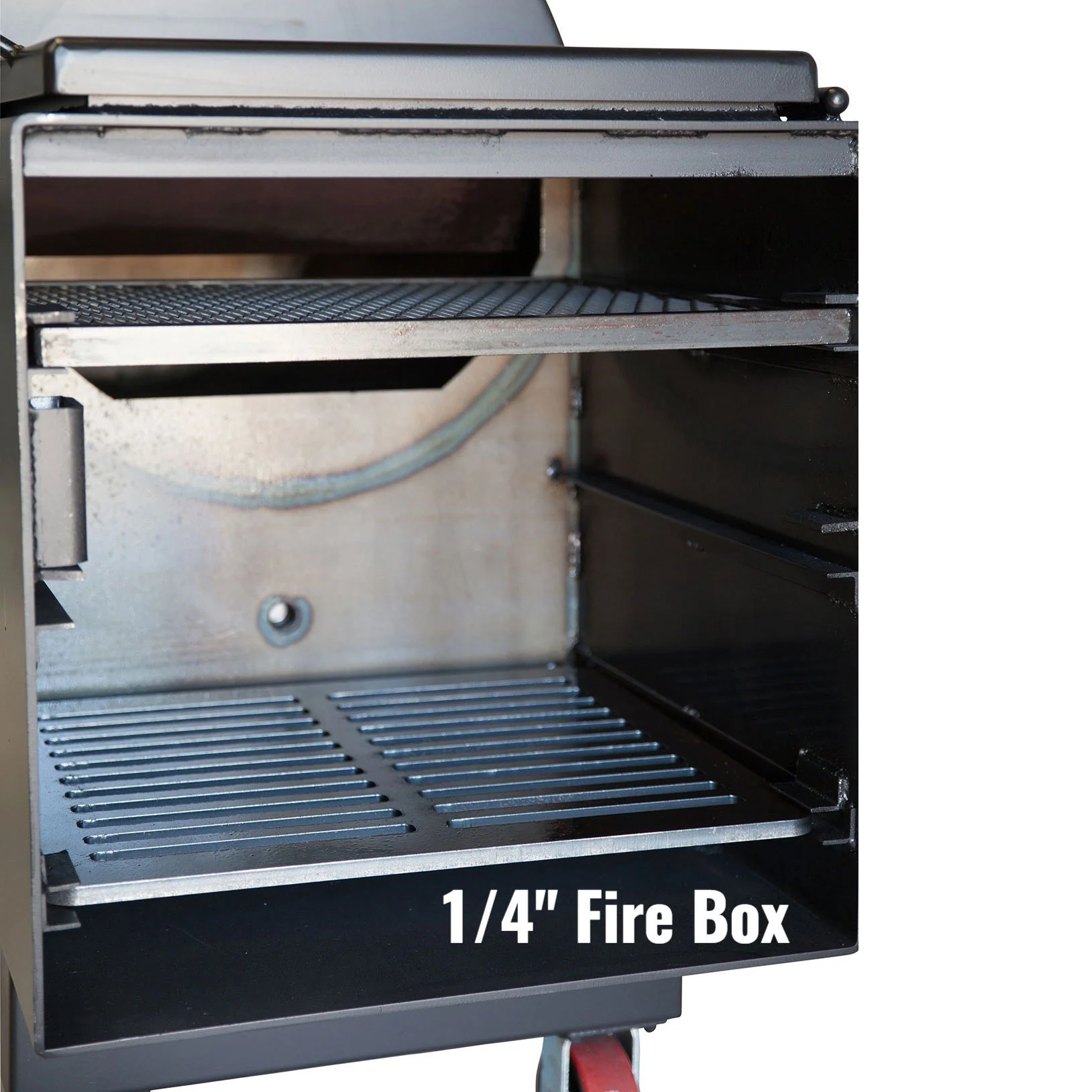

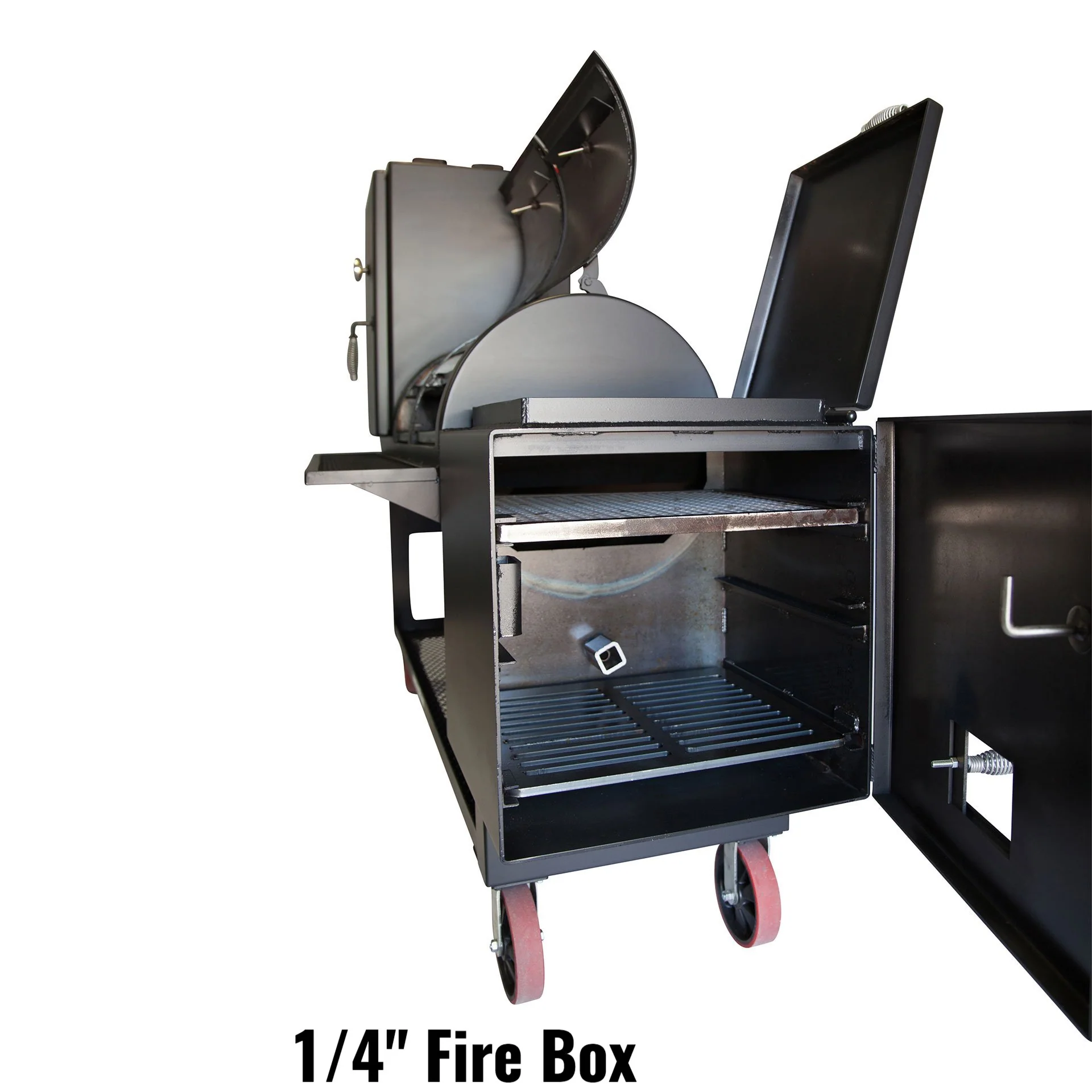

Square Firebox Dimensions:

24" x 24" x 22"

Product Details:

• 2 sliding/pull-out food trays framed with angle in the main chamber

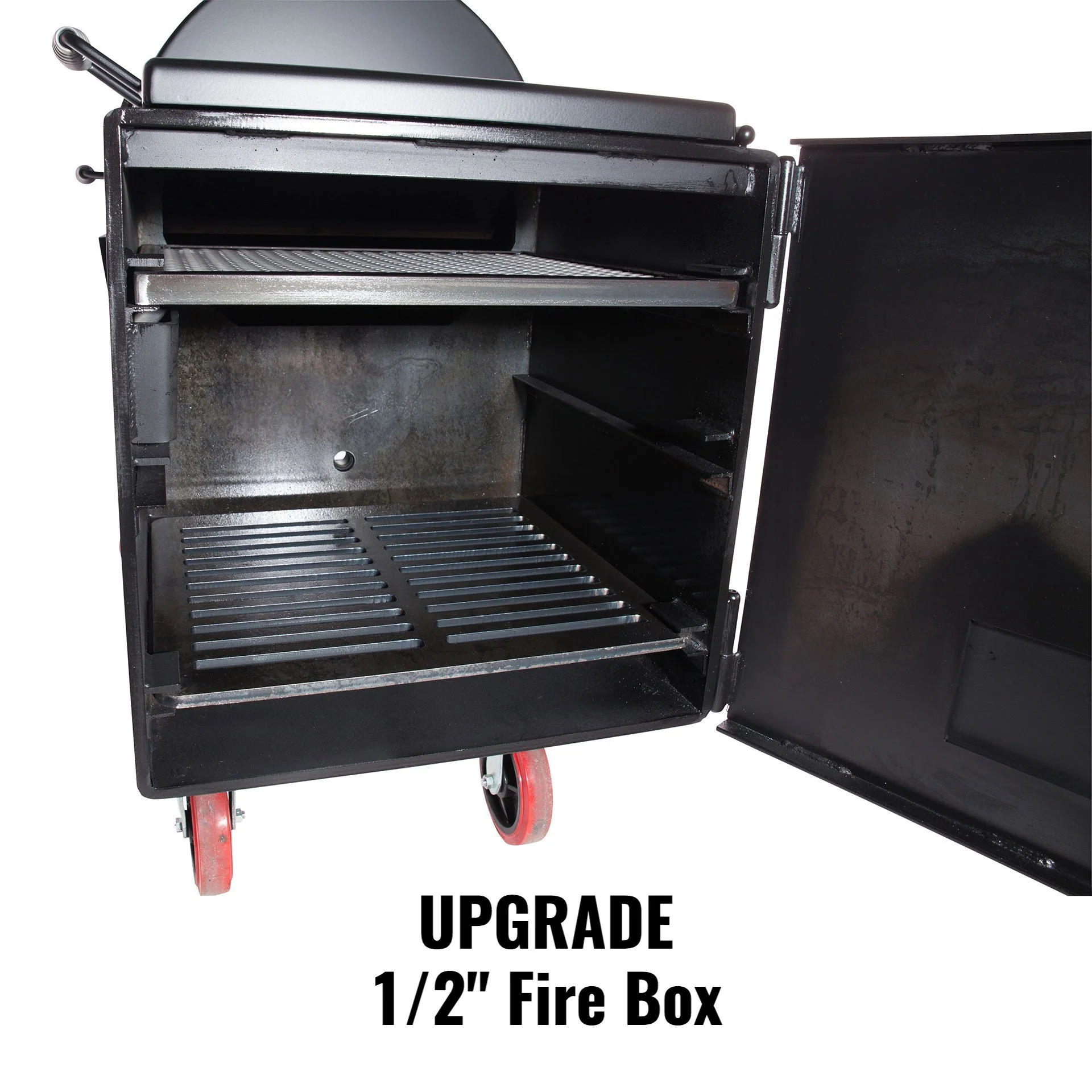

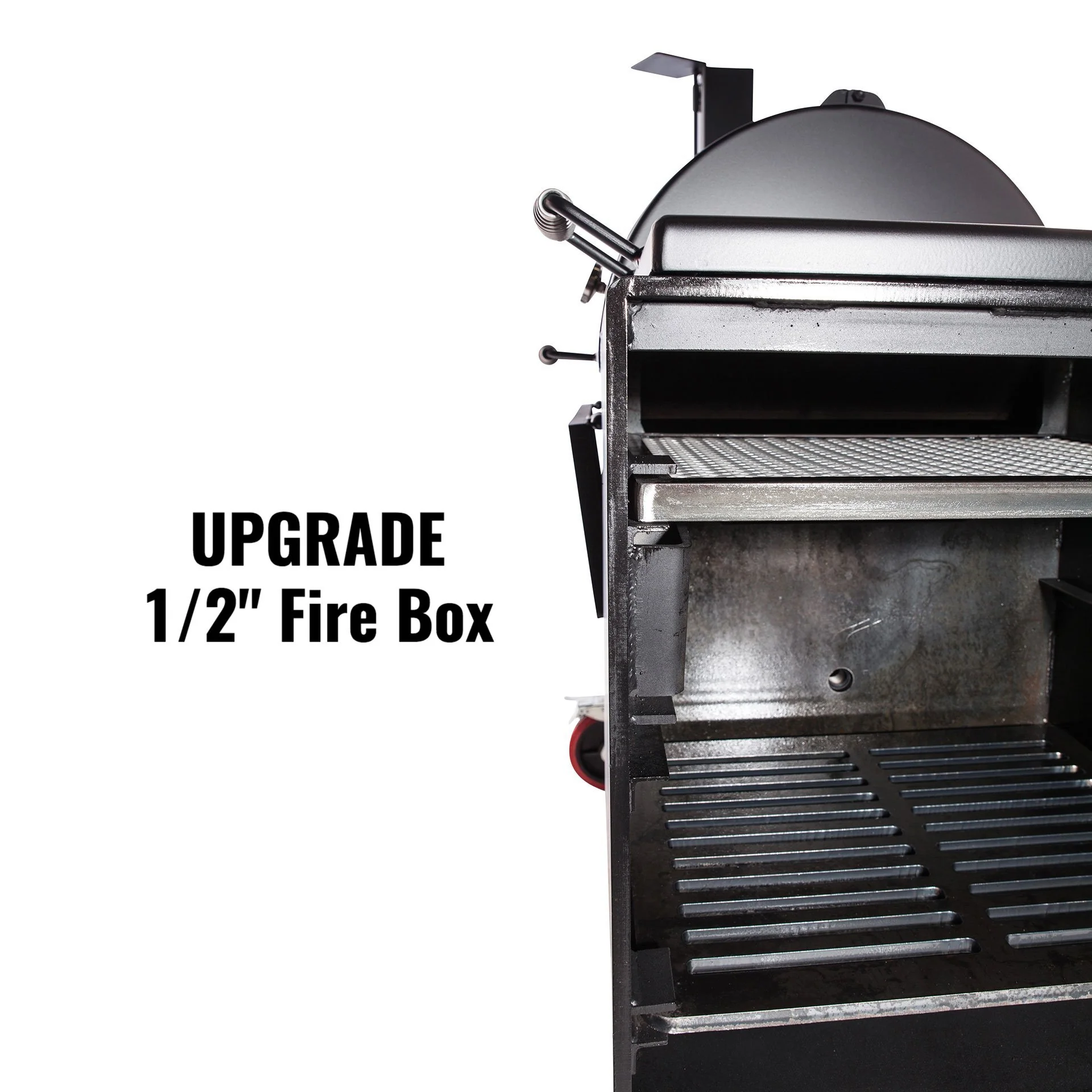

• 1 22" x 22" sliding/pull-out food tray framed with angle in the fire box (adjustable)
• Fully flanged doors to keep your heat inside main chamber
• Heat deflector
• Adjustable tuning plates to keep the temperature even from one side to the other
• 1 Tel-Tru stainless steel temperature gauge
• Stainless steel cool-touch handles

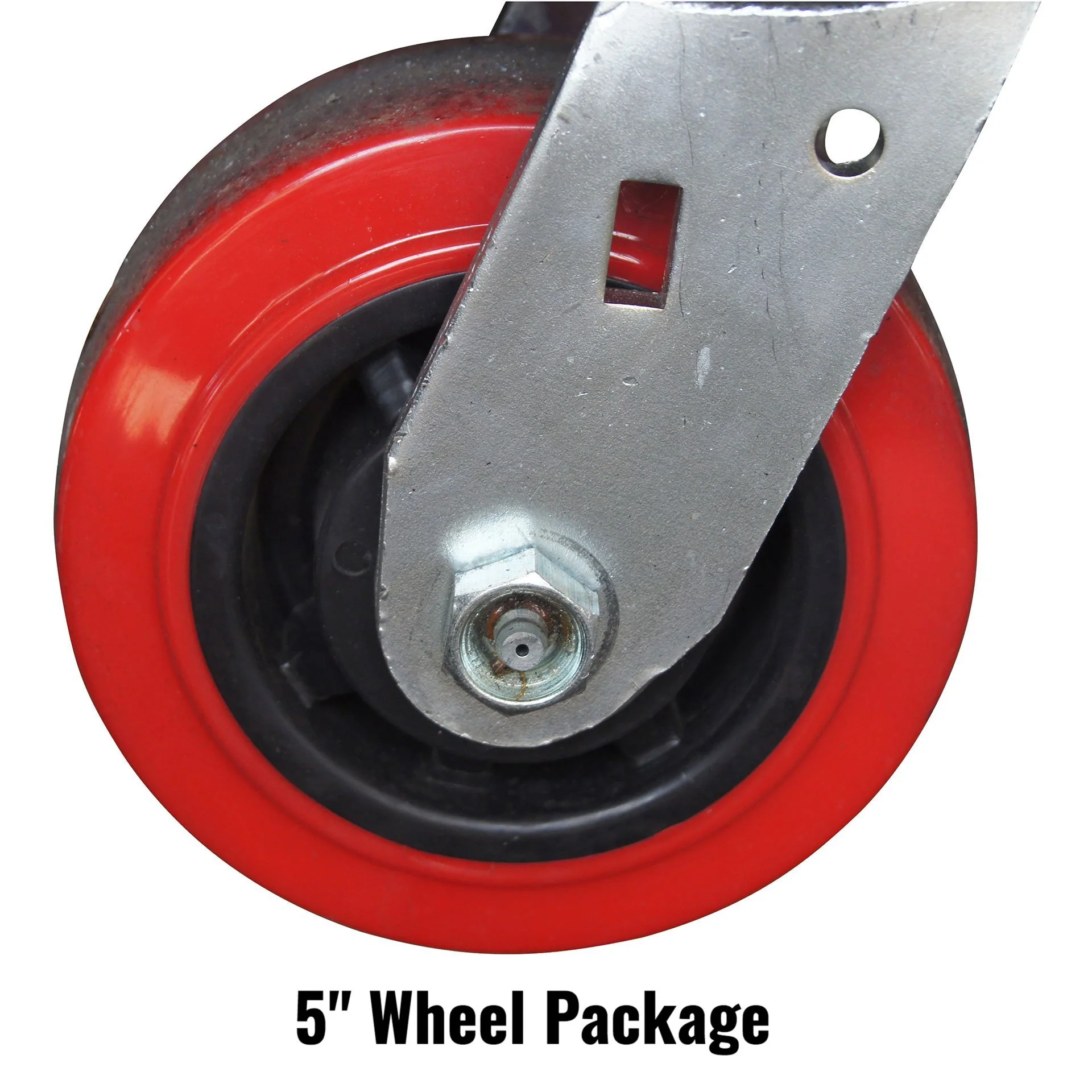

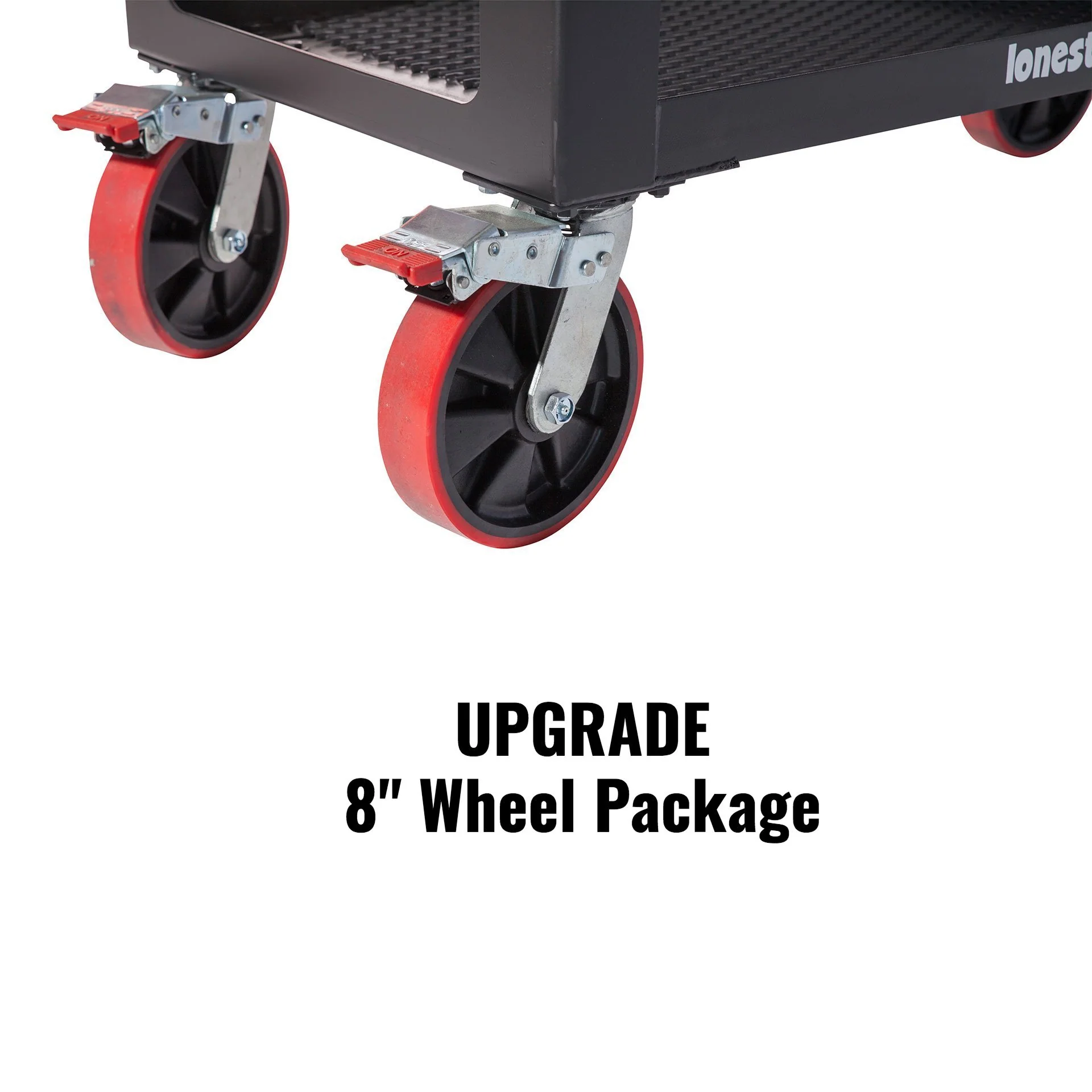

• 2 industrial heavy duty 5" wheels and 2 heavy duty 5" swivel wheels for easy mobility (cart models only)
• 24" x 72" lower log rack is framed in 2" x 2" x 1/8" angle can be used for your wood or anything you want
• 1 1/4" drain with steel cap
• 10" x 74" table
• Fire box is ready for propane log starter
• Painted with three coats of high heat paint
• Adjustable 5" smoke stack
• Total cooking area: 4700 sq/in.
• Weight: 1300 lbs
• Bottom grate: 21" x 23"
• Top grate: 21" x 18"
• Fire box grate: 21" x 23"

Capacity:

•  Brisket-18

• Spare Ribs-20
• Pork Butt-28
• Whole Chicken-28
• capacity is estimated and includes use of all available cooking space in the cooking chamber

Product Use:

The main chamber holds several gallons of water to steam and moisturize the meat while cooking. Drain out of the bottom cap when finished to clean out.
